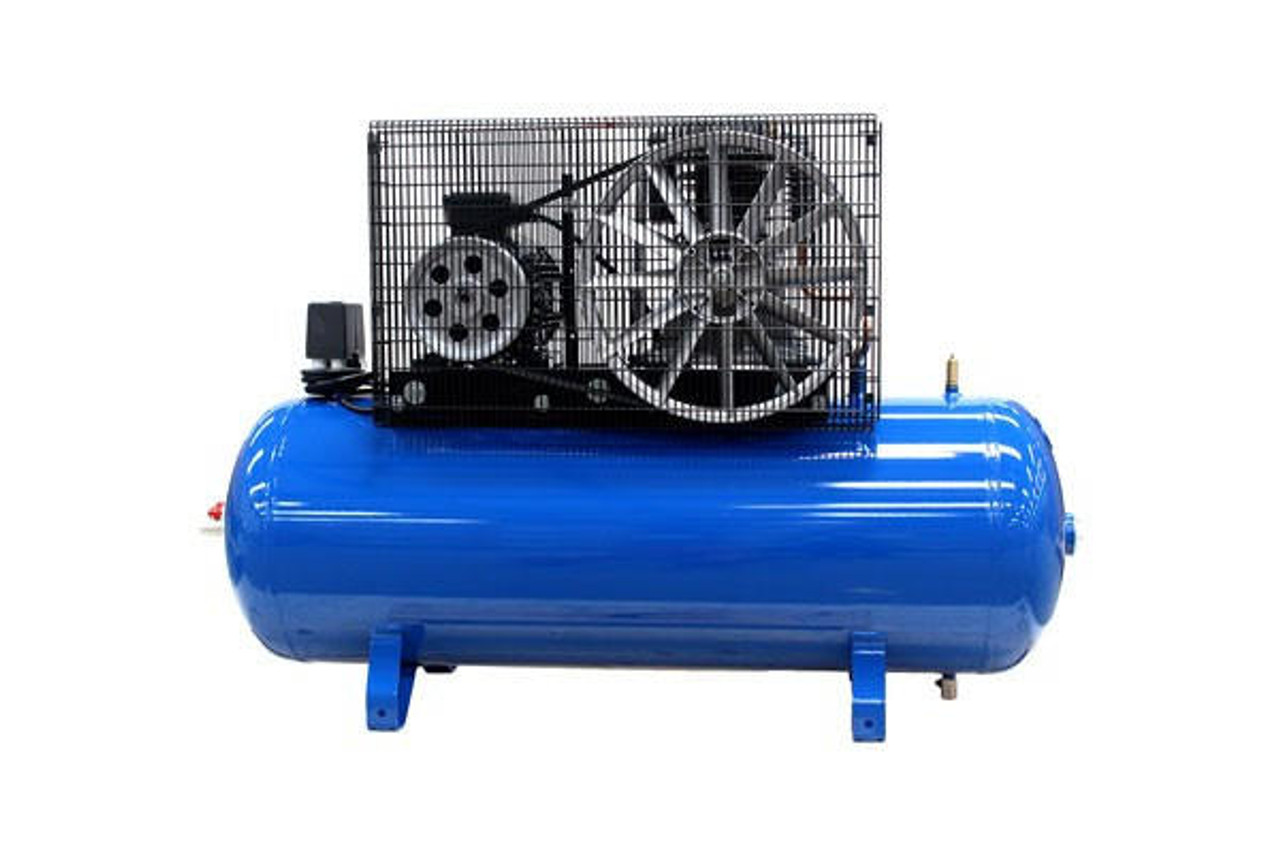

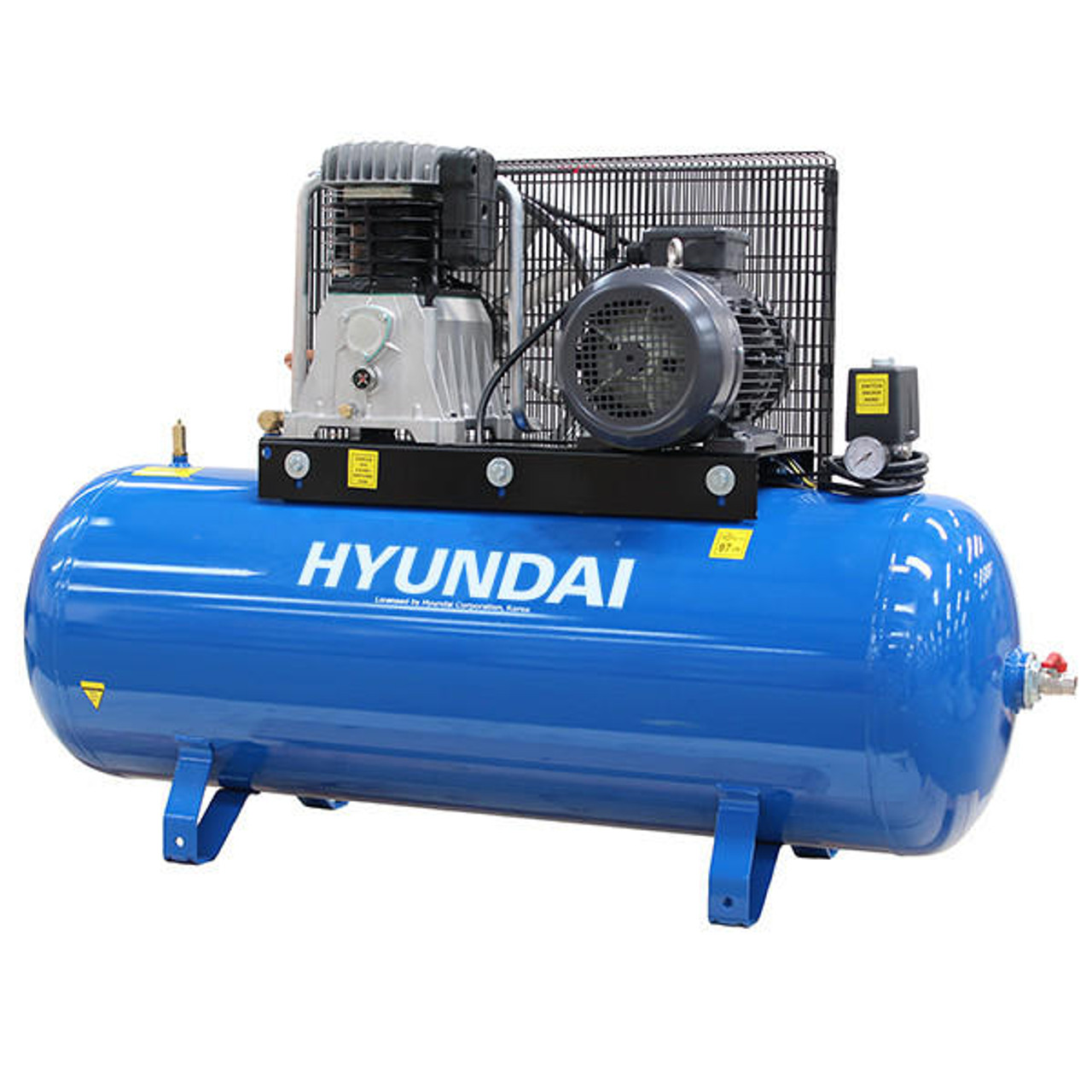

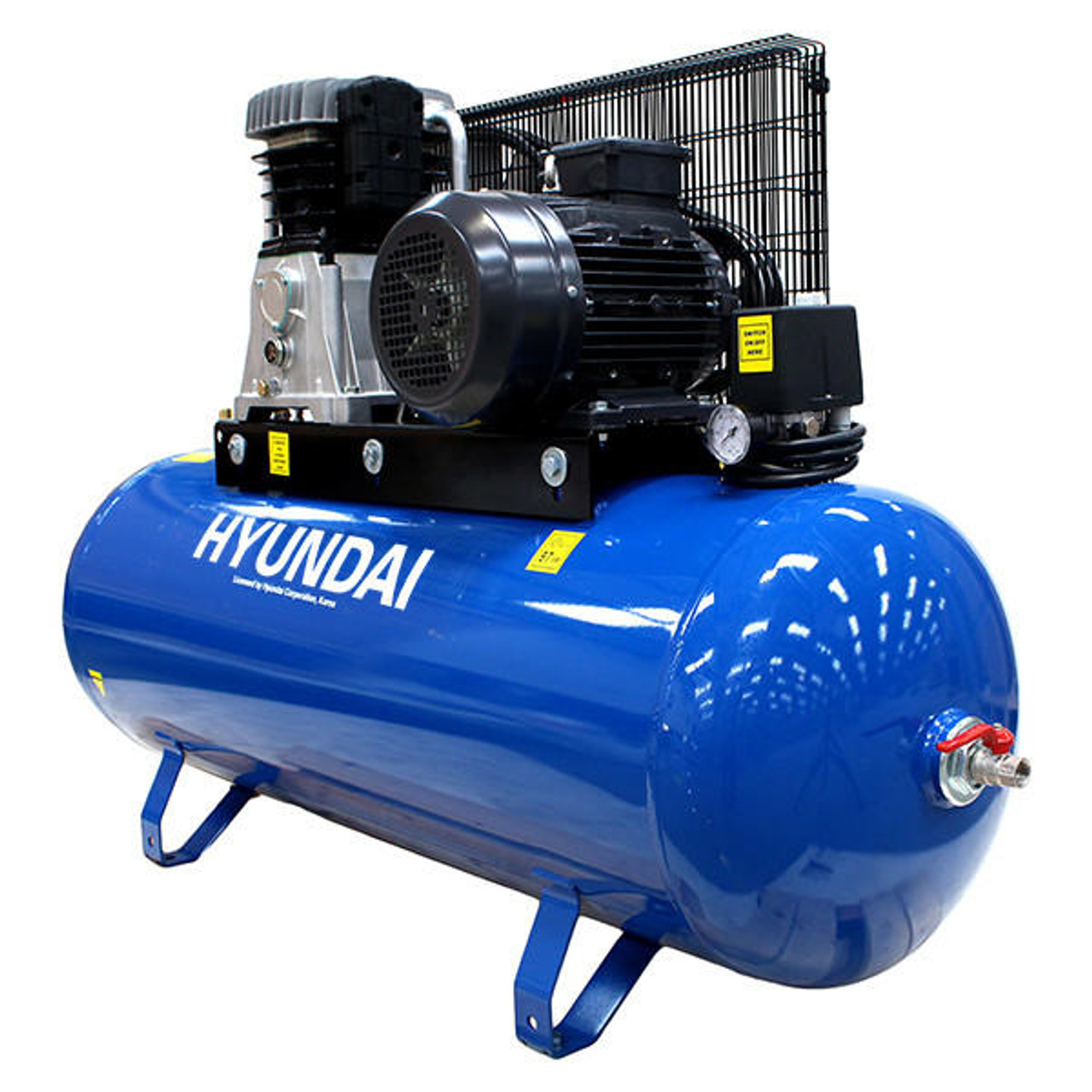

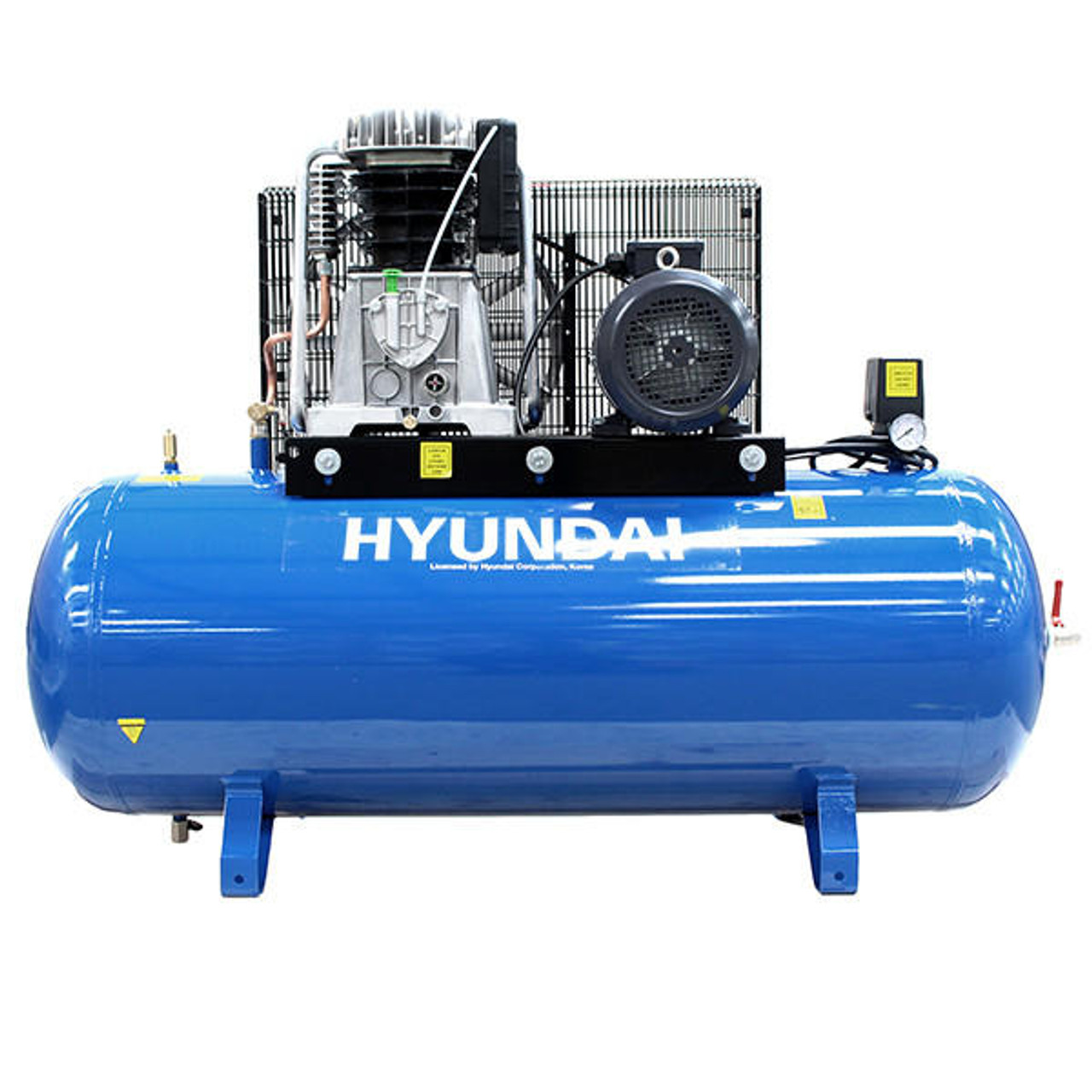

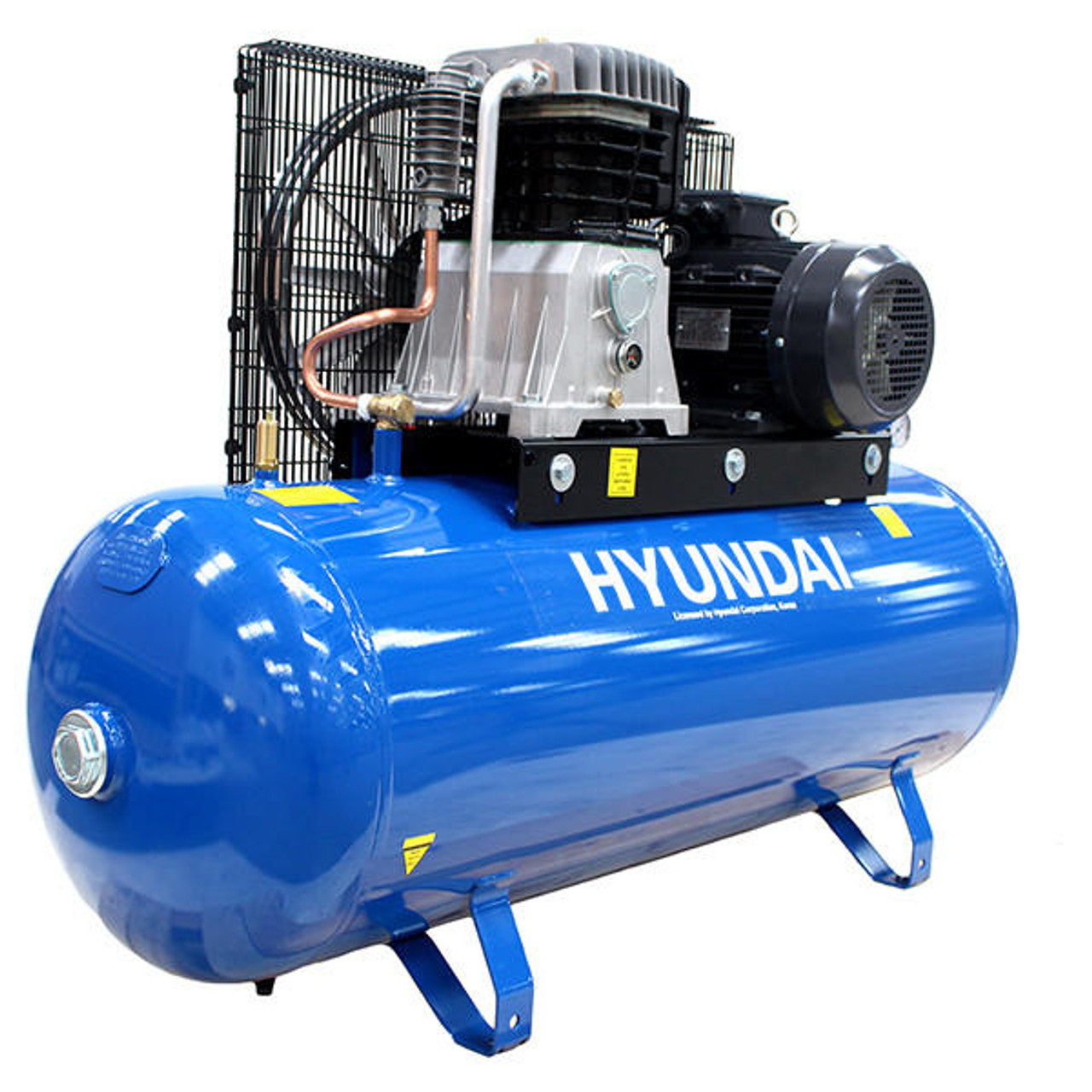

Hyundai HY55200-3 200 Litre Air Compressor 21CFM/145psi 3-Phase Twin Cylinder 5.5hp

Description

Professional Three Phase Air Compressor
The HY55200-3 is a heavy-duty industrial and professional three phase air compressor, built with the highest quality components to provide unbeatable performance.
Efficient Cooling

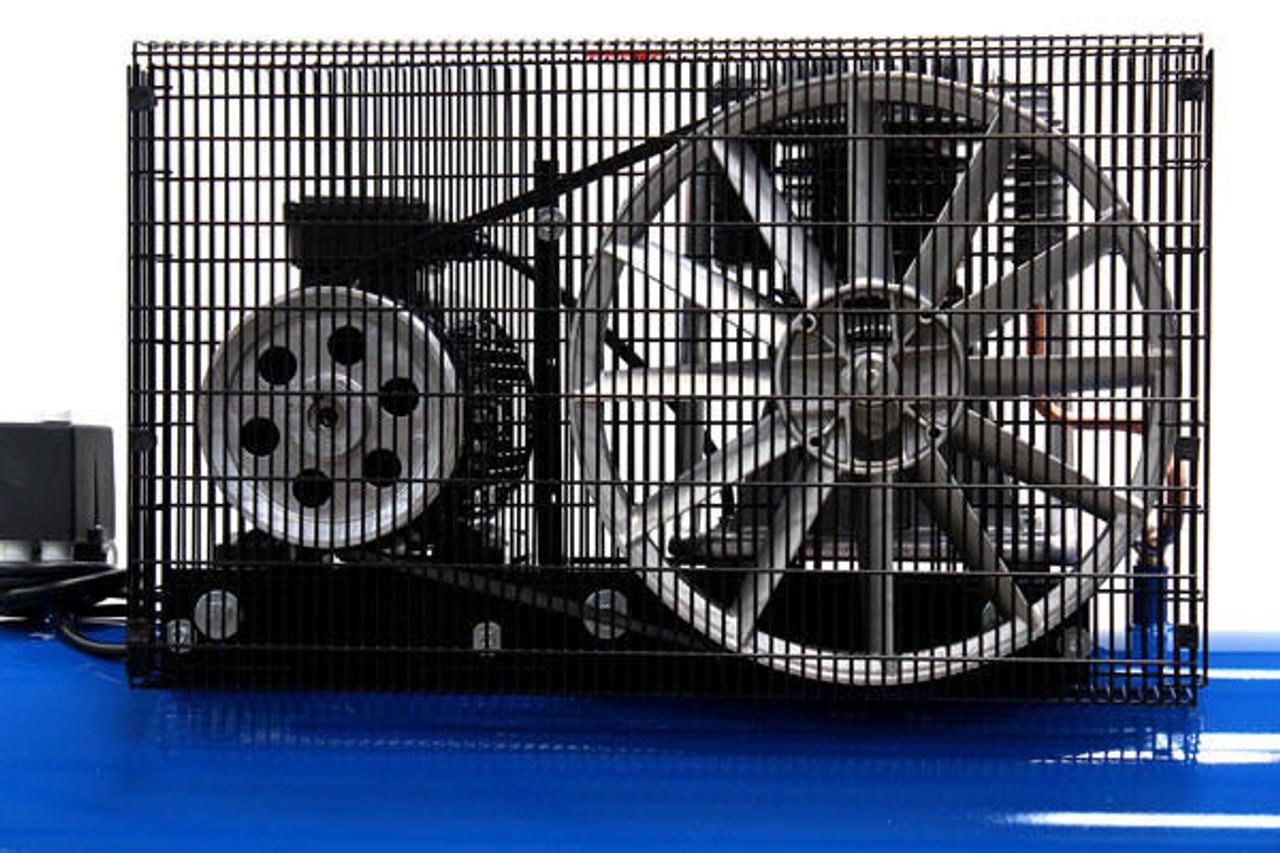

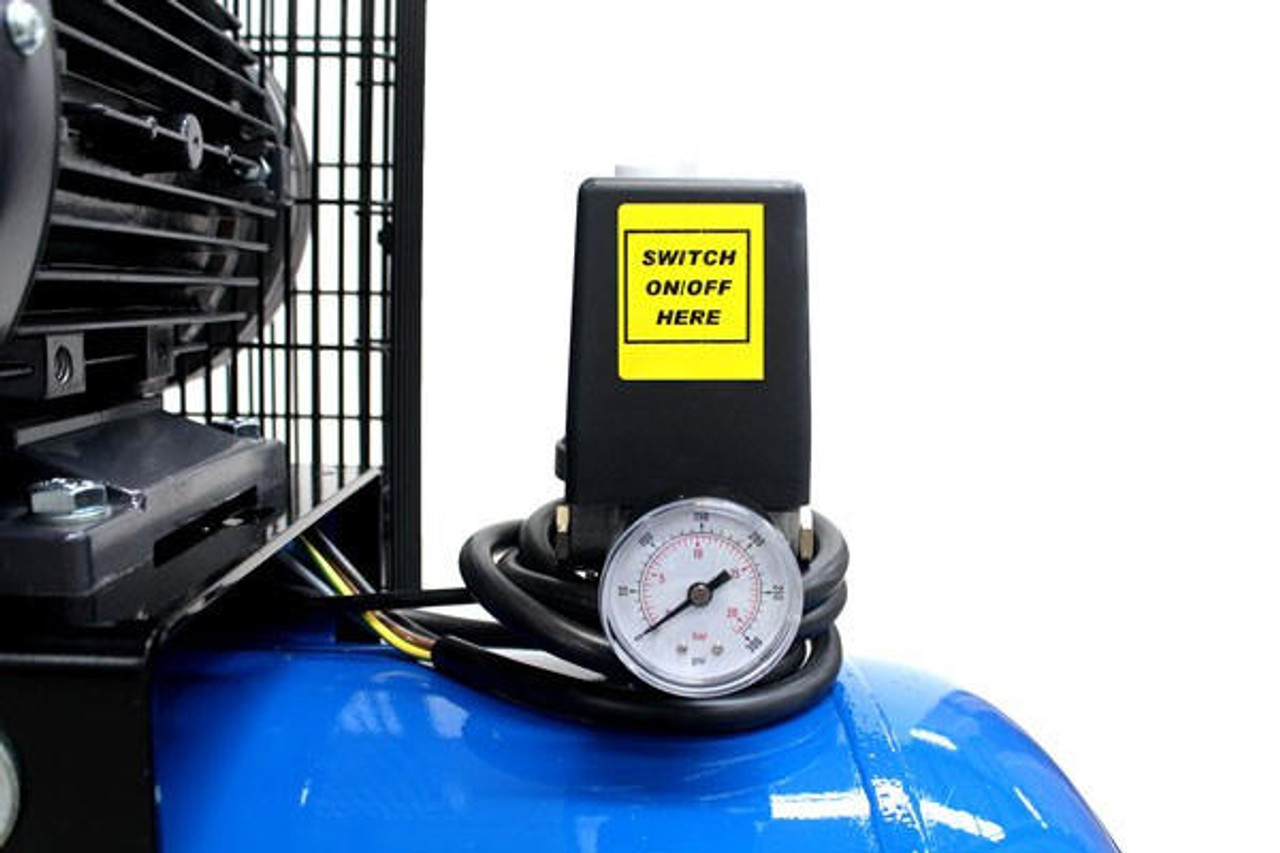

The heavy-duty motor has built-in overload protection, it’s fitted with aerodynamic flywheels for efficient cooling and the twin cylinder pumps has a slow running speed for lower noise levels and increased life expectancy.
Designed And Built To Last

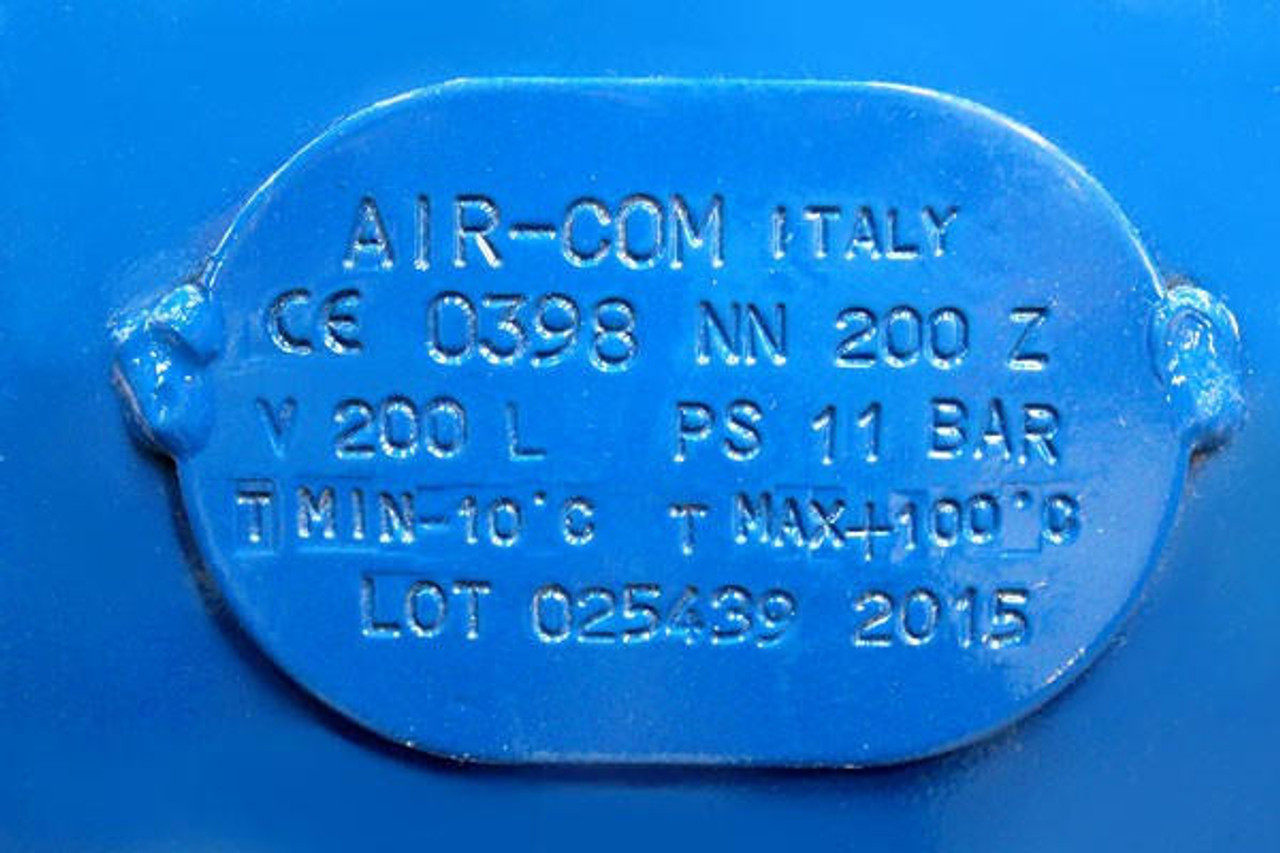

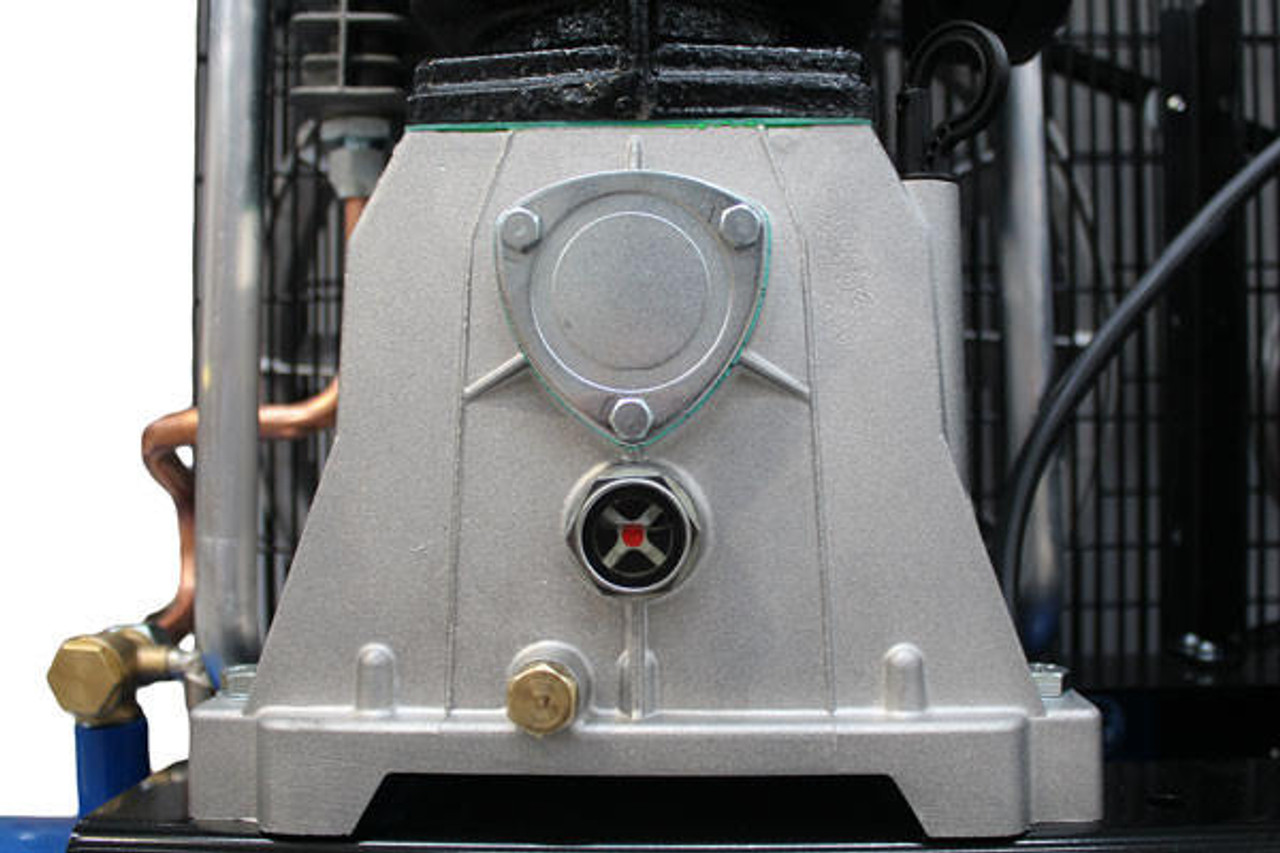

The cast iron cylinder block is designed to last and the air receiver is built to the latest European Standards 09/105 CE.
200L Air Tank
Powered by a 3-phase 5.5hp motor, the HY55200-3 can produce 21 CFM and has a 200 litre air tank. For professional users who have demanding air-powered tools, the HY55200-3 is the perfect machine for the job.
Warranty
All Hyundai air compressors are supplied with a Hyundai 2 year warranty.

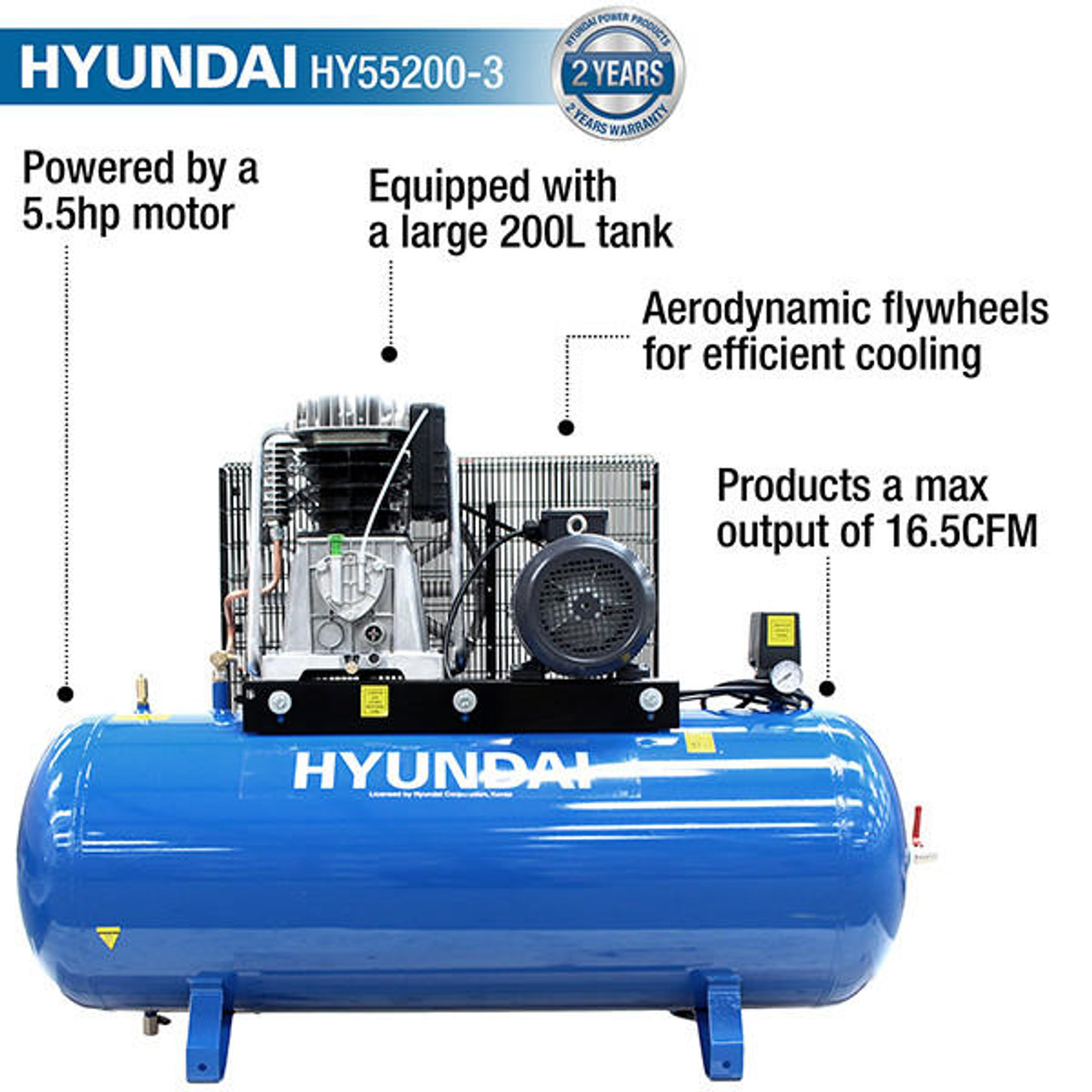

Key Features
Powered by a 5.5hp motor.
Equipped with a large 200L tank.
Products a maximum output of 16.5CFM.
Aerodynamic flywheels for efficient cooling

  • Powered by a 5.5hp motor.
  • Equipped with a large 200L tank.
  • Products a maximum output of 16.5CFM.
  • Aerodynamic flywheels for efficient cooling

£1,648.99

Out of stock

Notify me when this is avaliable

EAN: 702785146095 SKU: HY55200-3 Category:

Specification

Model HY55200-3
Start Method
Fuel/Power Source Electric Hard Wired
Cable Length (m)

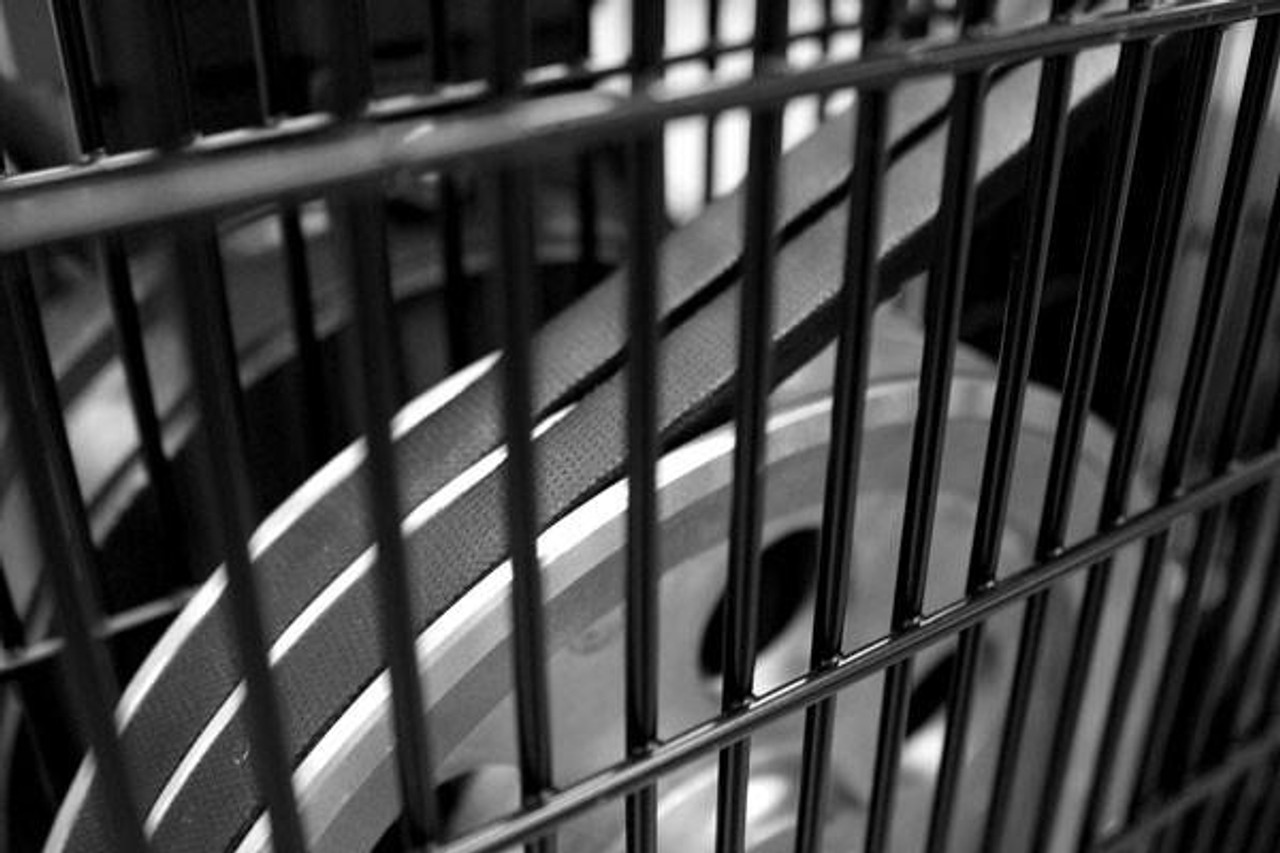

Drive Type Belt Drive
Tank Capacity (L) 200
Tank Material Steel
Cut-In Pressure (psi/bar) 87/6
Cut-Out Pressure (psi/bar) 120/8.3
Discharge Pressure (psi/bar)
Max Pressure (psi/bar) 145/10
Air Flow FAD (L/min) 476
Air Flow FAD (CFM) 16.5
Air Displacement (L/min) 651
Air Displacement (CFM) 21

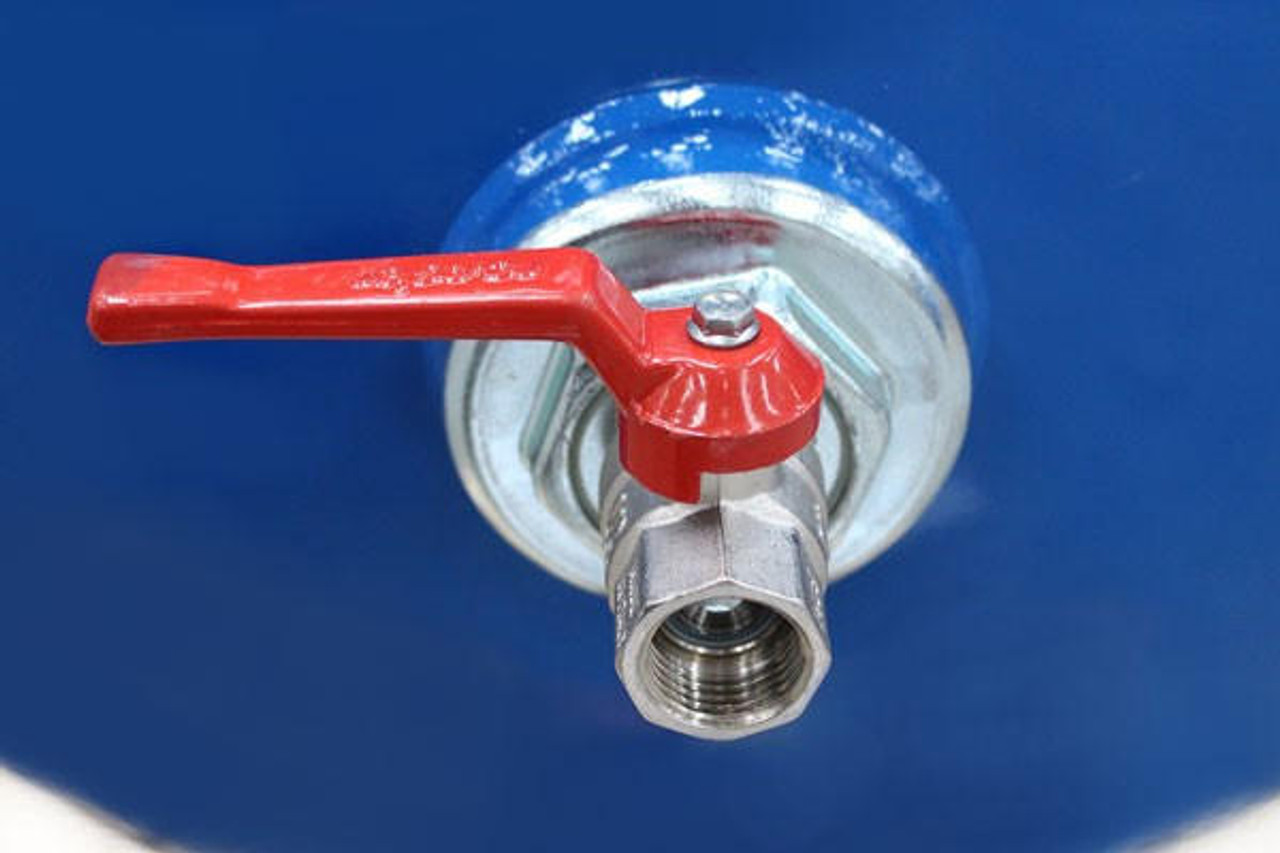

Air Outlet Connection 1/2″ BSP/Valve Tap
Outlet Pressure Regulation Type Fixed
Phase Three
Voltage 400
Rated Power (w)
Motor Power kW/hp 5.5/4
Motor Type Electric
Pump (RPM)
Speed (RPM)
Frequency (Hz) 50
Noise Level @ 7m (dB)
Gross Weight (kg)
Net Weight (kg)
Fully Assembled Dimensions (H x W x L) (mm) 940 x 480 x 1520
Packaged Dimensions (H x W x L) (mm)
Product Type Air Compressor
Warranty (years) 2
Model EAN 702785146095
