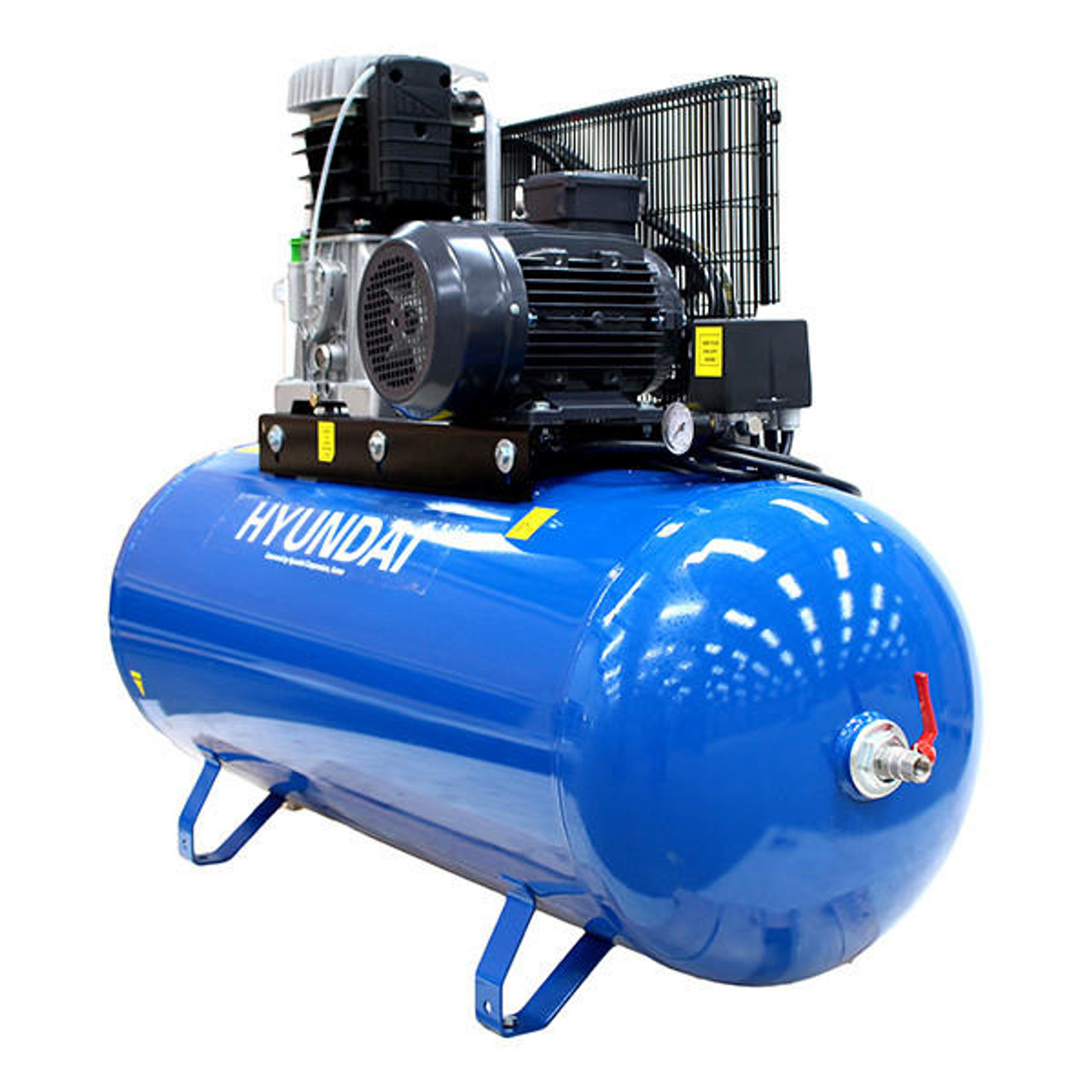

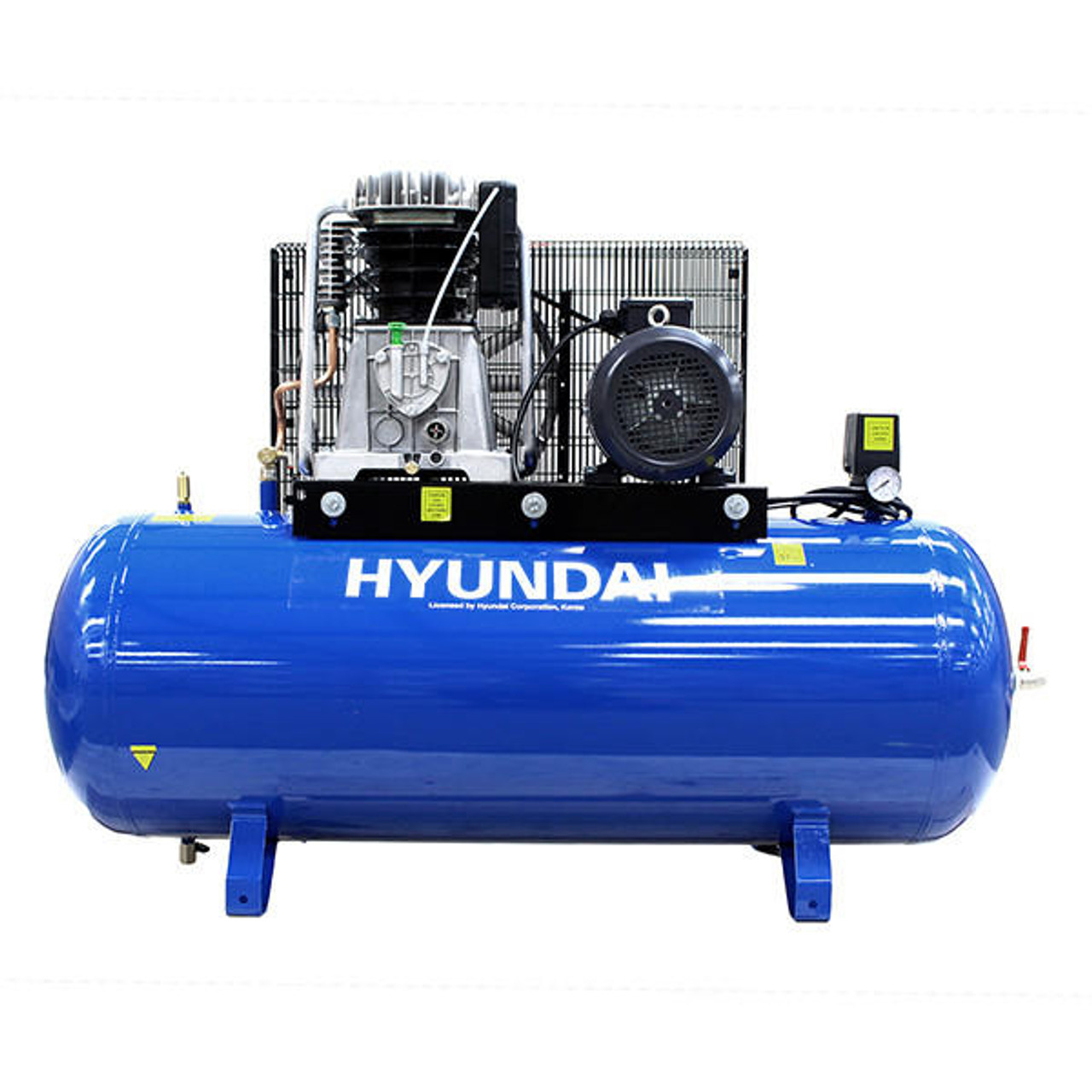

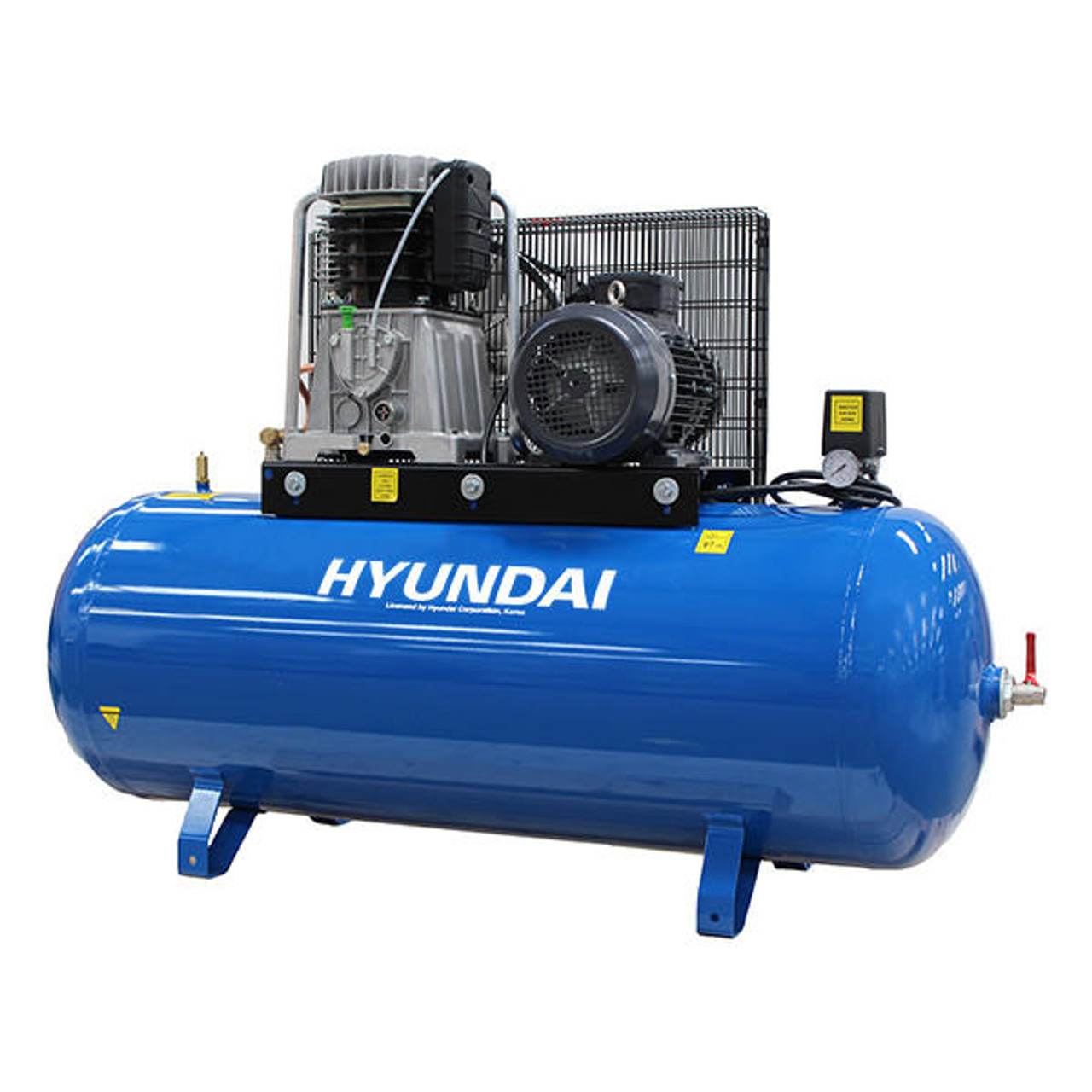

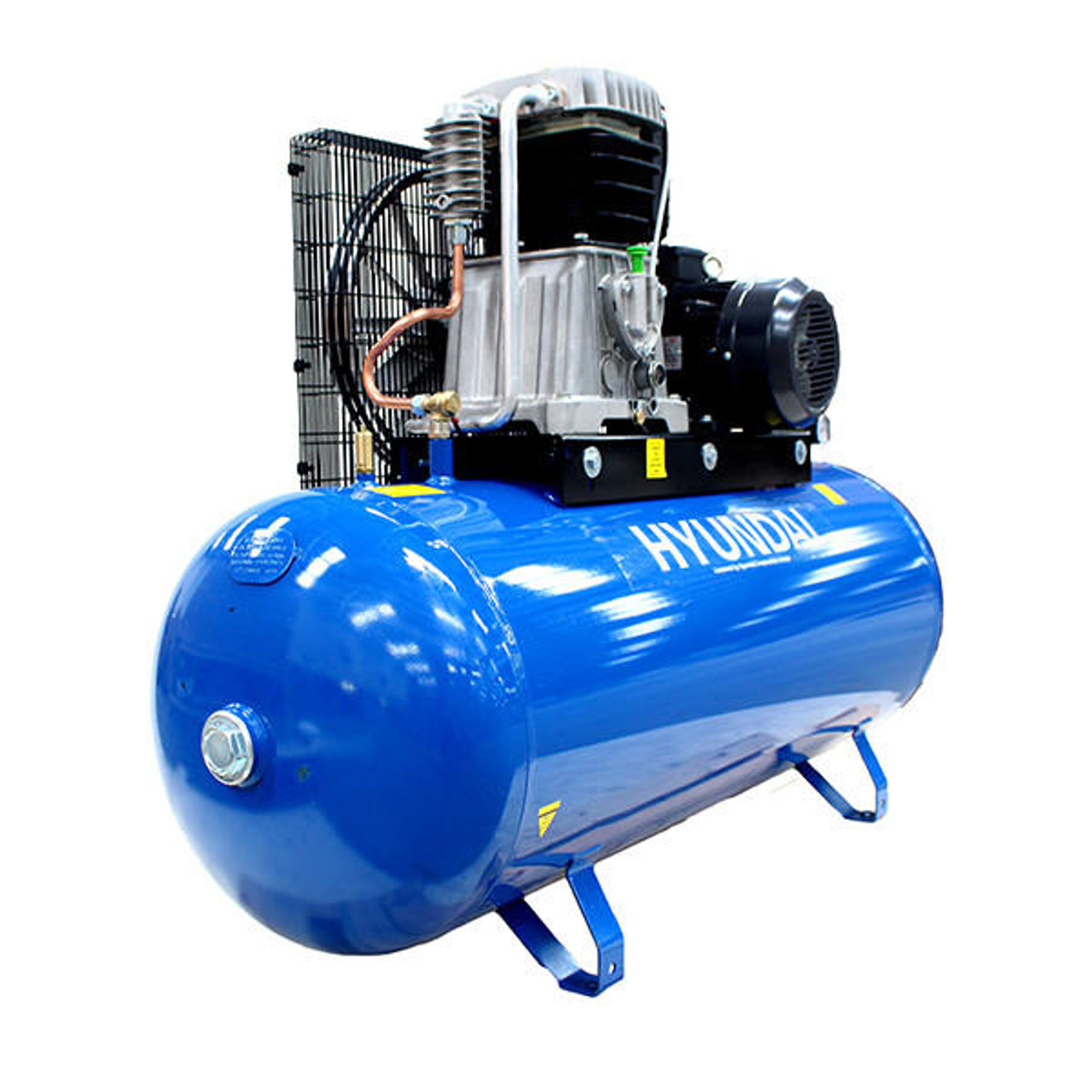

Hyundai HY75270-3 270 Litre Air Compressor 21CFM/145psi 3-Phase Pro-series 7.5hp

Description

Professional Three Phase Air Compressor
The HY75270-3 is a heavy-duty industrial and professional three phase air compressor, built with the highest quality components to provide unbeatable performance.
7.5hp Engine
This air compressor benefits from the powerful 7.5hp engine and produces 29 CFM from its large 270 litre rolled steel air tank.
Built To Last

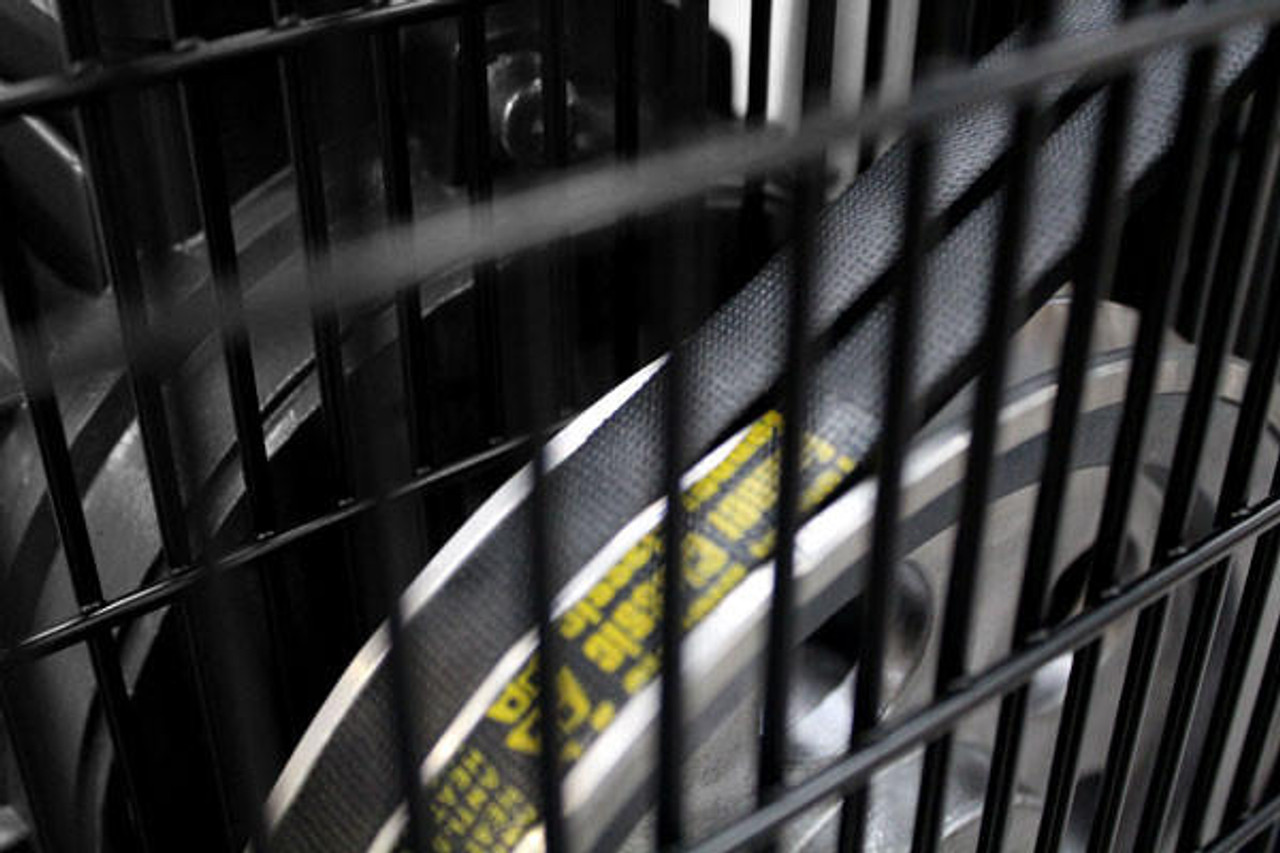

The heavy duty motor has built-in overload protection, it’s fitted with aerodynamic flywheels for efficient cooling and the twin cylinder pump has a slow running, 3 phase motor, for lower noise levels and increased life expectancy.

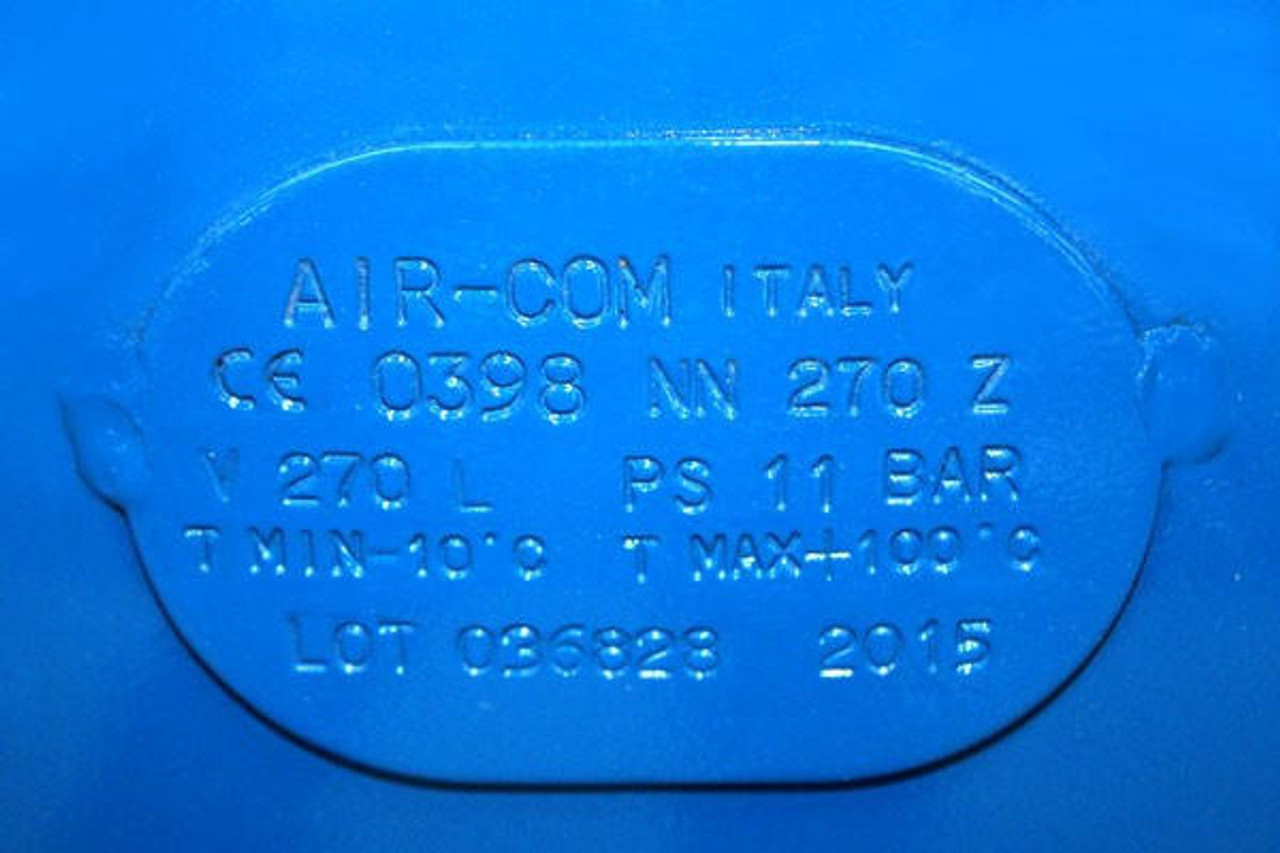

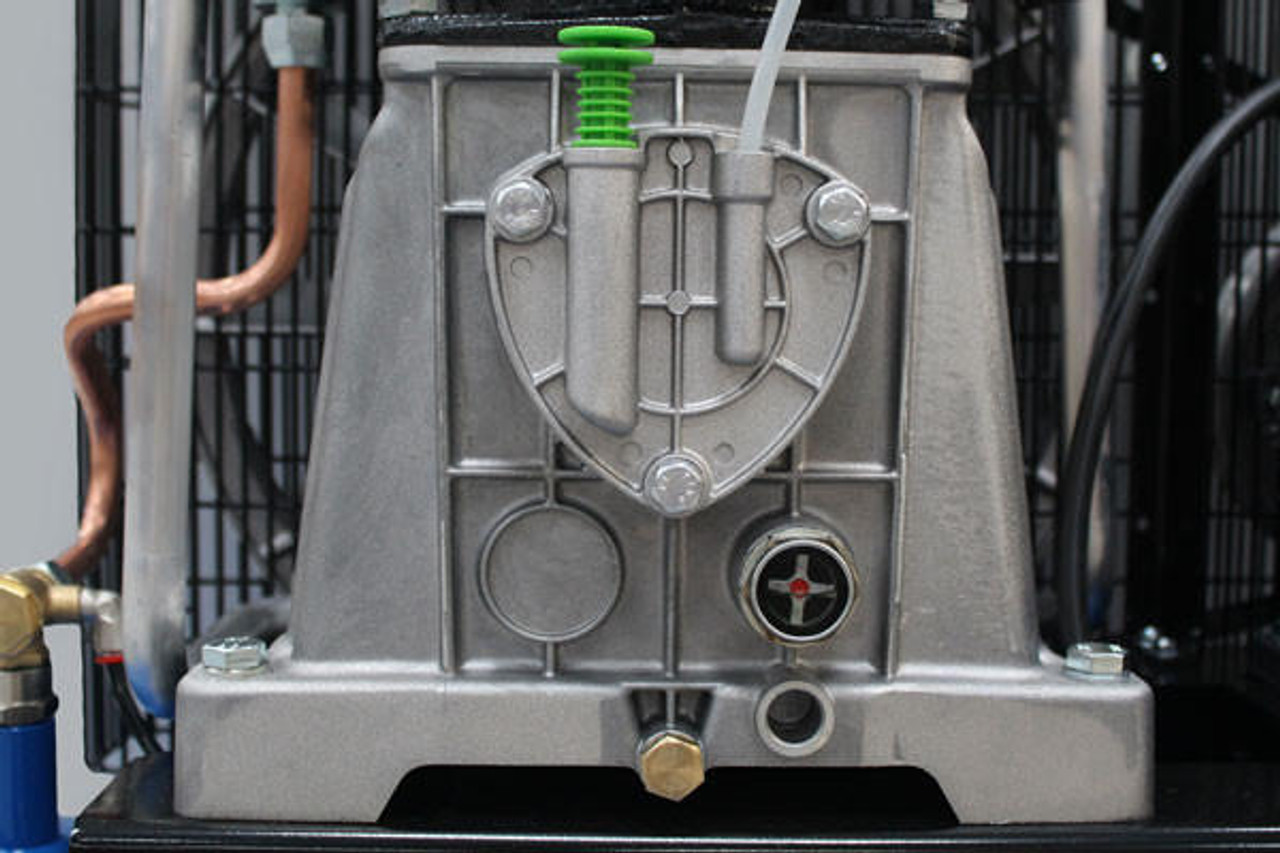

The cast iron cylinder block is designed to last and the air receiver is built to the latest European Standards 09/105 CE.
Warranty
Covered by 2 year warranty.
Compressor Care
Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.

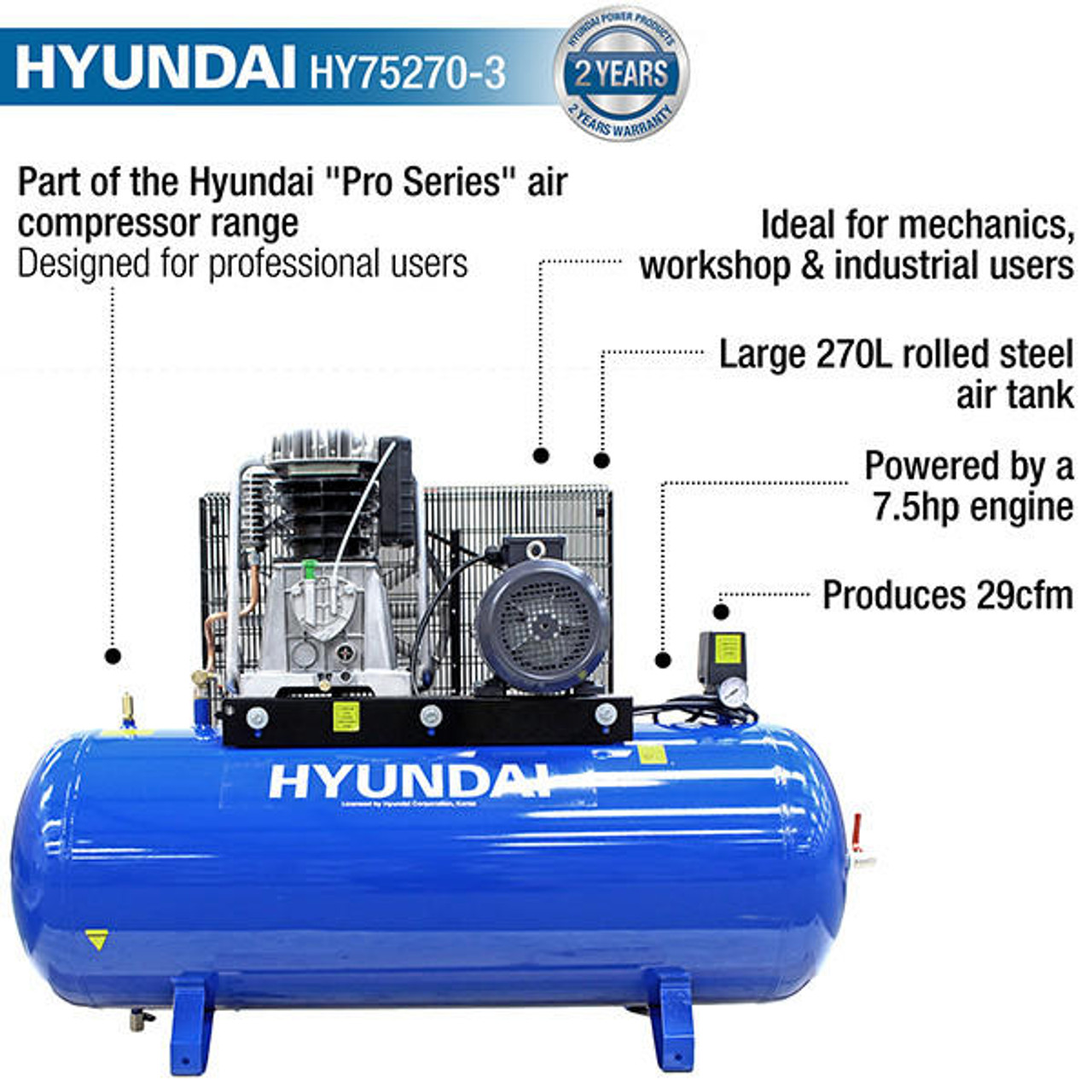

Key Features
Part of the Hyundai “Pro Series” air compressor range designed for professional users.
A belt drive air compressor, it’s powered by a 7.5hp engine.
Fitted with a large 270L rolled steel air tank, producing 29cfm.
A belt driven air compressor, it’s built to withstand the challenges of tough daily use.
Ideal for mechanics, workshop and industrial users who need a heavy-duty air compressor.

  • Part of the Hyundai “Pro Series” air compressor range designed for professional users.
  • A belt drive air compressor, it’s powered by a 7.5hp engine.
  • Fitted with a large 270L rolled steel air tank, producing 29cfm.
  • A belt driven air compressor, it’s built to withstand the challenges of tough daily use.
  • Ideal for mechanics, workshop and industrial users who need a heavy-duty air compressor.

£1,842.99

Out of stock

Notify me when this is avaliable

EAN: 702785146101 SKU: HY75270-3 Category:

Specification

Model HY75270-3
Start Method
Fuel/Power Source Electric Hard Wired
Cable Length (m)
Drive Type Belt Drive
Tank Capacity (L) 270
Tank Material Steel
Cut-In Pressure (psi/bar) 87/6
Cut-Out Pressure (psi/bar) 120/8.3
Discharge Pressure (psi/bar)
Max Pressure (psi/bar) 145/10
Air Flow FAD (L/min) 595
Air Flow FAD (CFM) 21
Air Displacement (L/min) 821
Air Displacement (CFM) 29

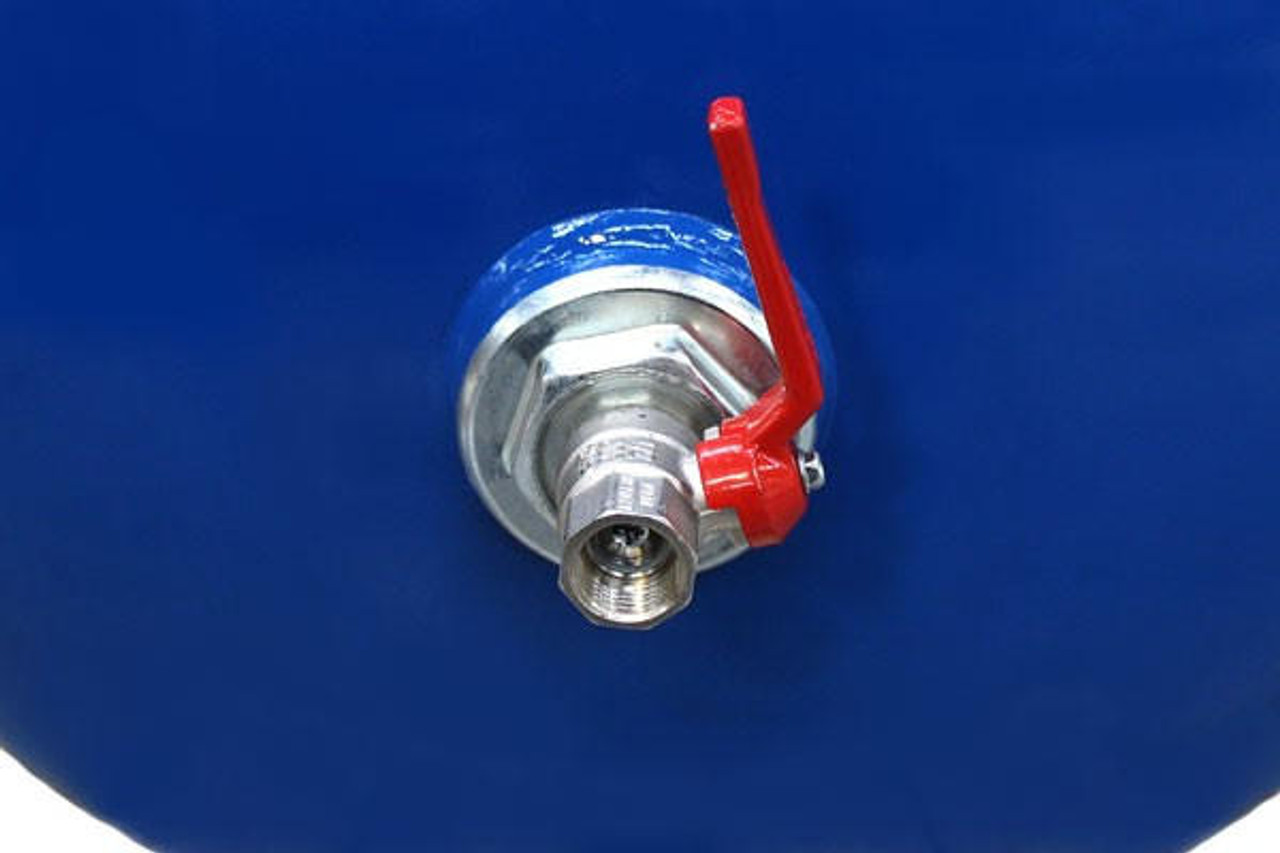

Air Outlet Connection 1/2″ BSP/Valve Tap
Outlet Pressure Regulation Type Fixed
Phase Three
Voltage 400
Rated Power (w)
Motor Power kW/hp 5.6/7.5
Motor Type Electric
Pump (RPM)
Speed (RPM)
Frequency (Hz) 50
Noise Level @ 7m (dB)
Gross Weight (kg)
Net Weight (kg) 150
Fully Assembled Dimensions (H x W x L) (mm) 1040 x 500 x 1600
Packaged Dimensions (H x W x L) (mm)
Product Type Air Compressor
Warranty (years) 2
Model EAN 702785146101
In The Box
