Hyundai HYCP9070 81.5kg 42cm 196cc Petrol Plate Compactor / Wacker Plate with Wheel Kit and Paving Pad

Description

Hyundai Compactor/Wacker

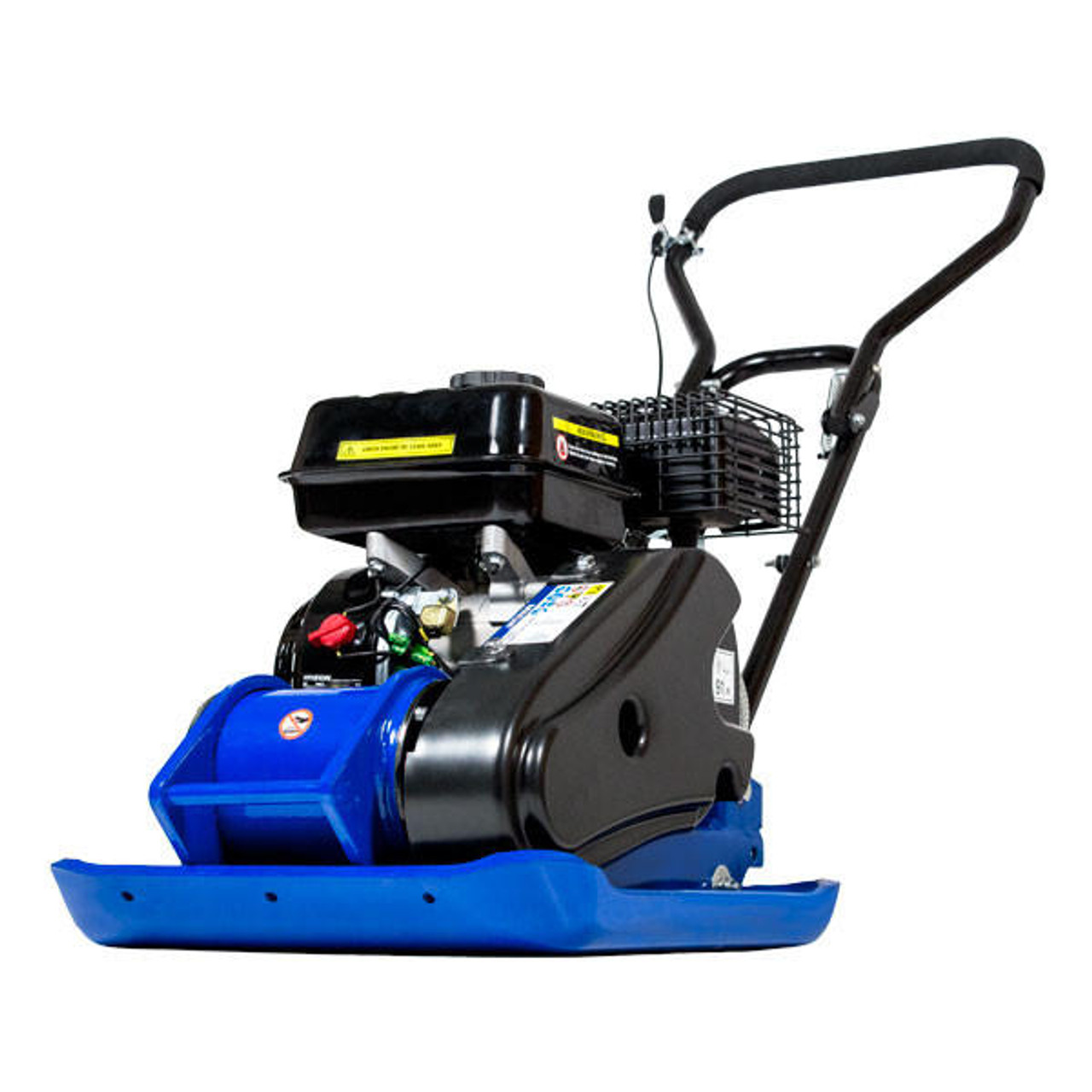

The HYCP9070 is the flagship compactor plate / wacker in the Hyundai Power Equipment range, powered by a 196cc 4-stroke petrol engine and equipped with an extra-large plate measuring 540mm x 420mm (L x W).
Suitable Uses
With a travelling speed of 15m/min and a compaction depth of 300mm, this compactor plate is suited for jobs both large and small, such as building driveways, patios, decking, block paving and more. Providing a cost-effective alternative to hiring. The HYCP9070 is more than capable of compacting soil, sand and gravel into a level and solid foundation.
The included paving pad will protect patios and block paving from being marked during use.
Easy To Use

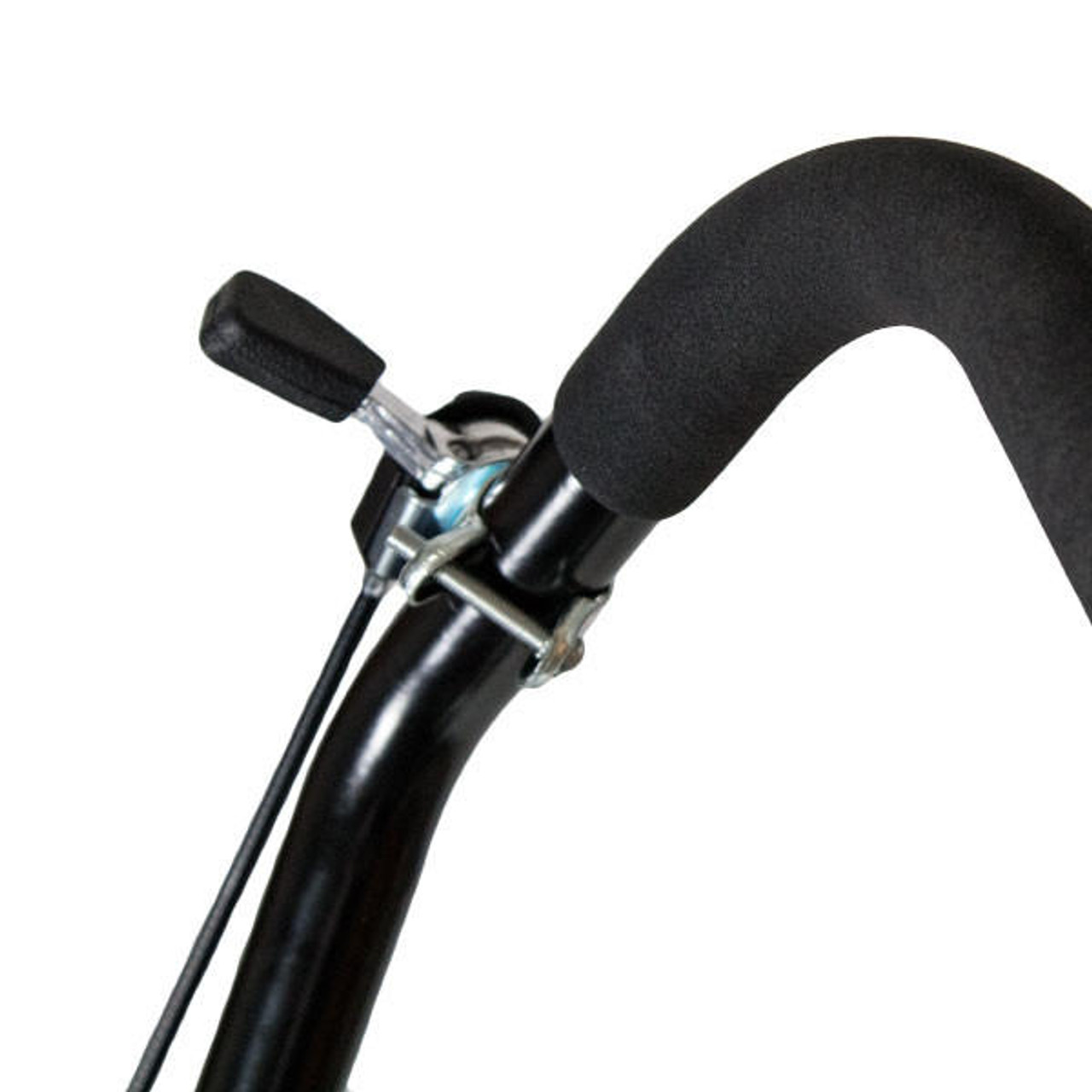

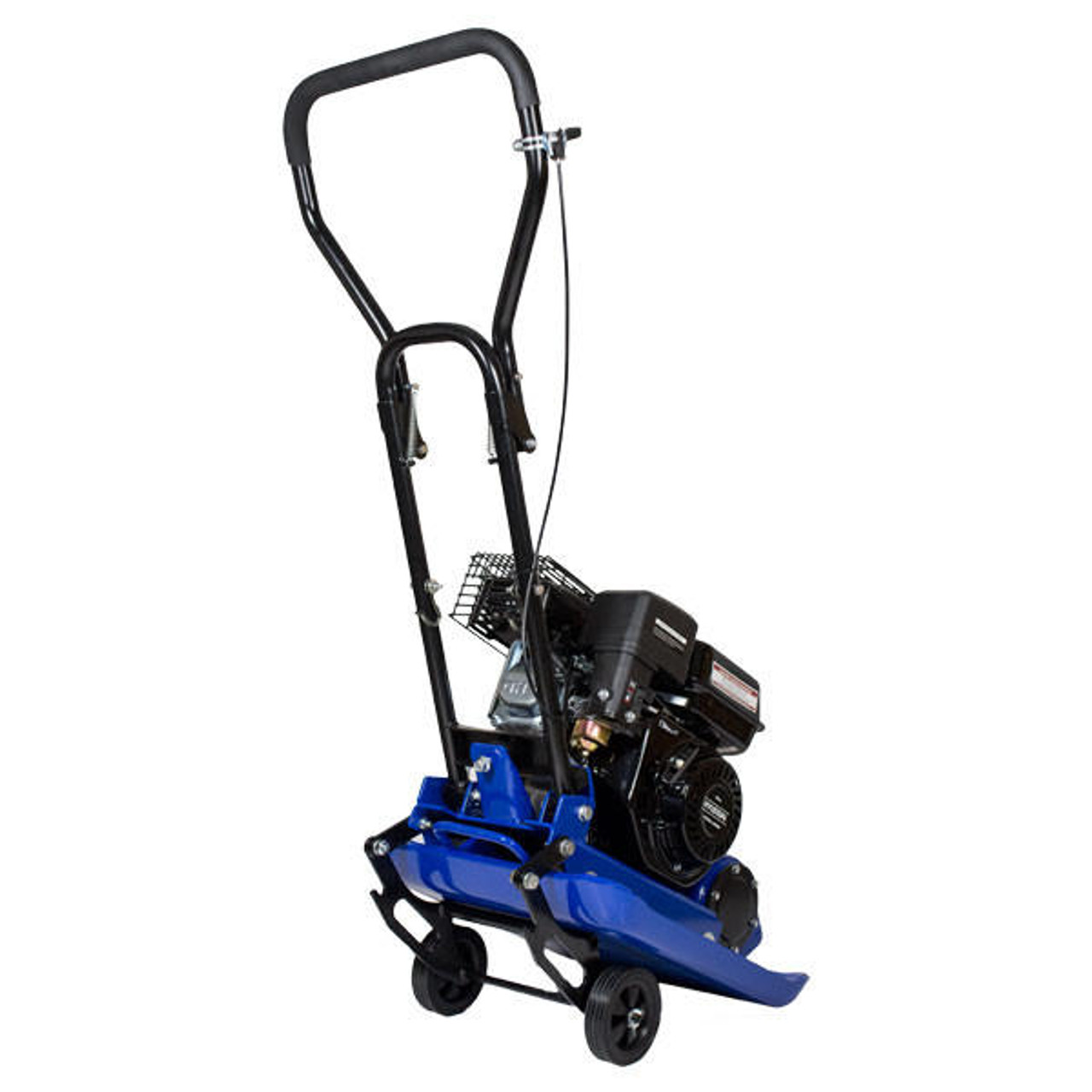

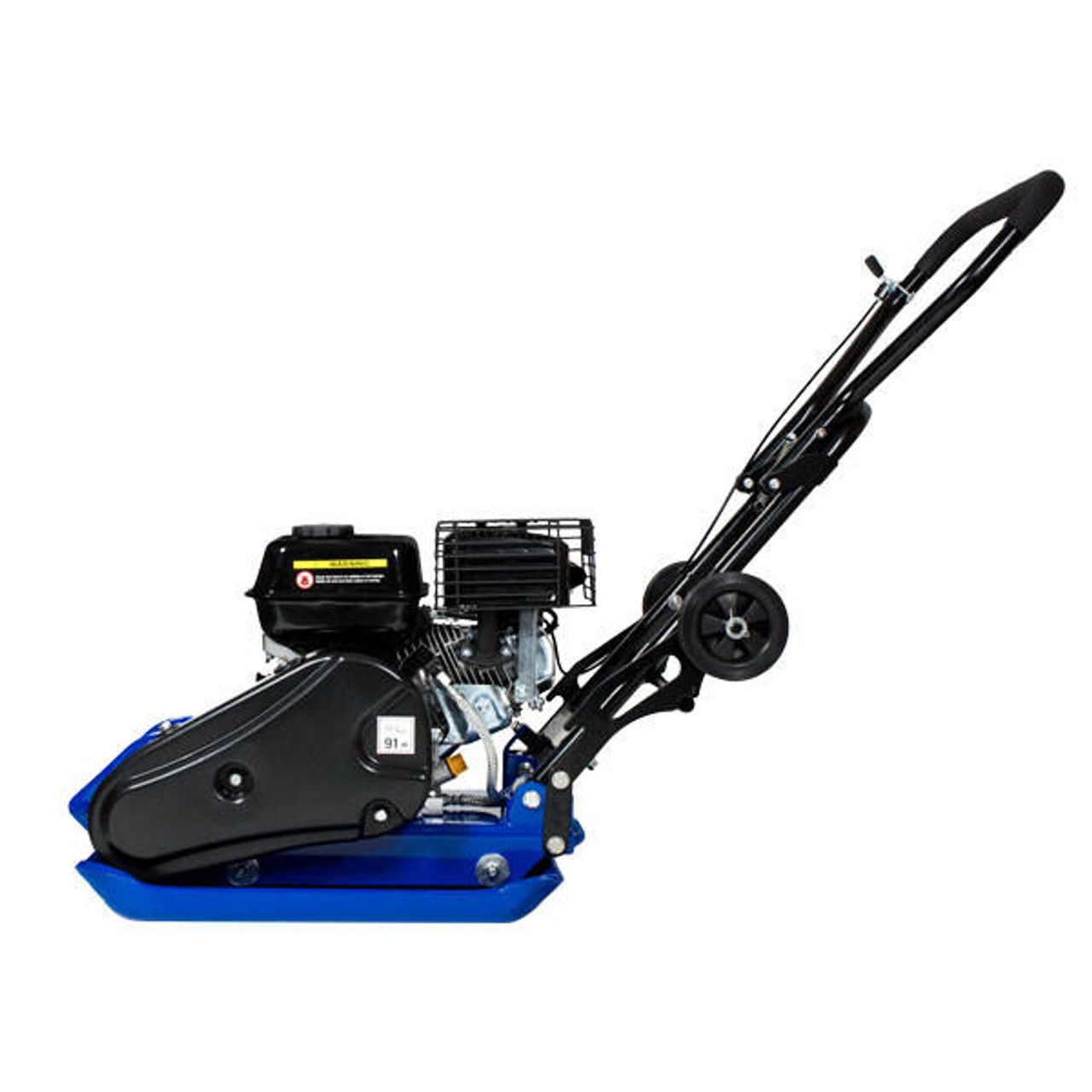

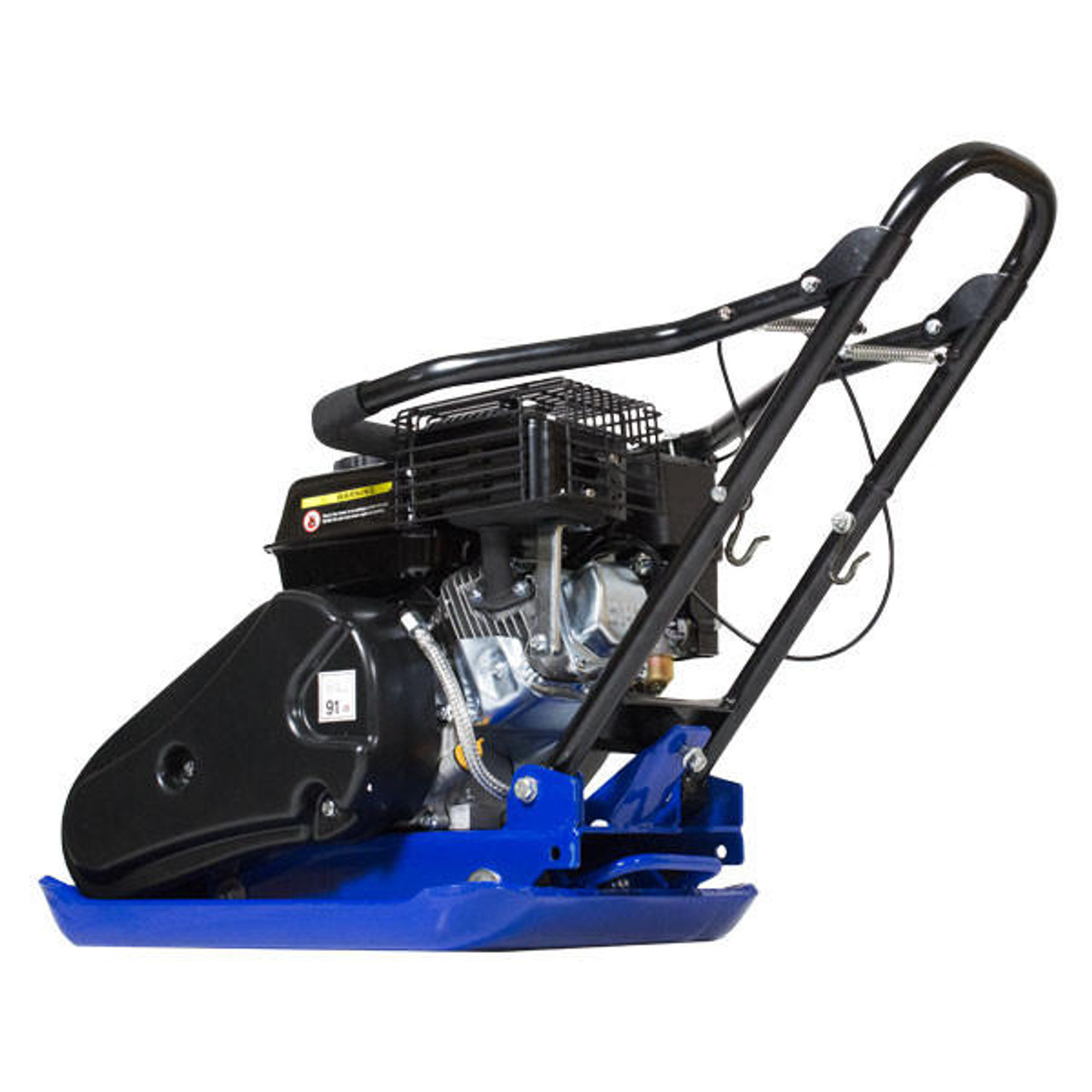

The wheel kit and guide handle allows for easy manoeuvrability and incorporates a soft grip foam to increase comfort for the user. The handle will also fold down for ease of transport and storage.
The controls to run the compactor plate are all within easy reach of the guide handle making operation and control simple.
Built To Last
The design of the HYCP9070 is simple and efficient, but it’s built to last for years of reliable service. The V-belt is housed by a hard cover to protect it from the knocks and bumps of construction work, and the handle is covered by a soft grip for increased comfort during operation.
In The Box:
Hyundai HYCP9070 Compactor Plate
Wheel Kit
Paving Pad
Tool Kit
User Manual
Key Features
The flagship Hyundai compactor plate, powered by a 196cc 4-stroke recoil start petrol engine for reliable performance.
Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
Equipped with a large fuel tank for long running.
Fitted with a large plate for working effectively on large areas.
Has a travelling speed of 15m/min, with a compaction depth of 300mm.
Wheel Kit and Paving Pad included.

  • The flagship Hyundai compactor plate, powered by a 196cc 4-stroke recoil start petrol engine for reliable performance.
  • Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
  • Equipped with a large fuel tank for long running.
  • Fitted with a large plate for working effectively on large areas.
  • Has a travelling speed of 15m/min, with a compaction depth of 300mm.
  • Wheel Kit and Paving Pad included.

£387.99

EAN: 747150287836 SKU: HYCP9070 Category:

Specification

Model HYCP9070
Start Method Recoil
Drive Type
Compaction Depth (mm) 300
Plate Size (mm) 540 x 420
Centrifugal Force (N) 13000
Travel Speed (m/min) 15
Vibration value m/s² 17.42
Exciter Oil Capacity (ml) 100
Exciter Speed (RPM) 5500
Handle Type Soft Grip
Safety Features Oil Alarm
Engine Model 168F
Engine Type Hyundai 4-Stroke
Engine Size (cc) 196
Rated Power (hp) 5.2
Rated Speed (RPM) 3600
Fuel Unleaded Petrol
Fuel Capacity (L) 3.6
Engine Oil SAE30 or SAE15W40
Engine Oil Capacity (ml) 600
Sound Level (db) 86
Gross Weight (kg) 81.5
Net Weight (kg) 79
Fully Assembled Dimensions (H x W x L) (mm) 860 x 440 x 1220
Package Dimensions (H x W x L) (mm) 475 x 440 x 755
Fuel/Power Source Petrol
Product Type Compactor Plate
Warranty (years) 3
Commercial Warranty (years) 1
Model EAN 747150287836
In the Box HYCP9070 & Manual
