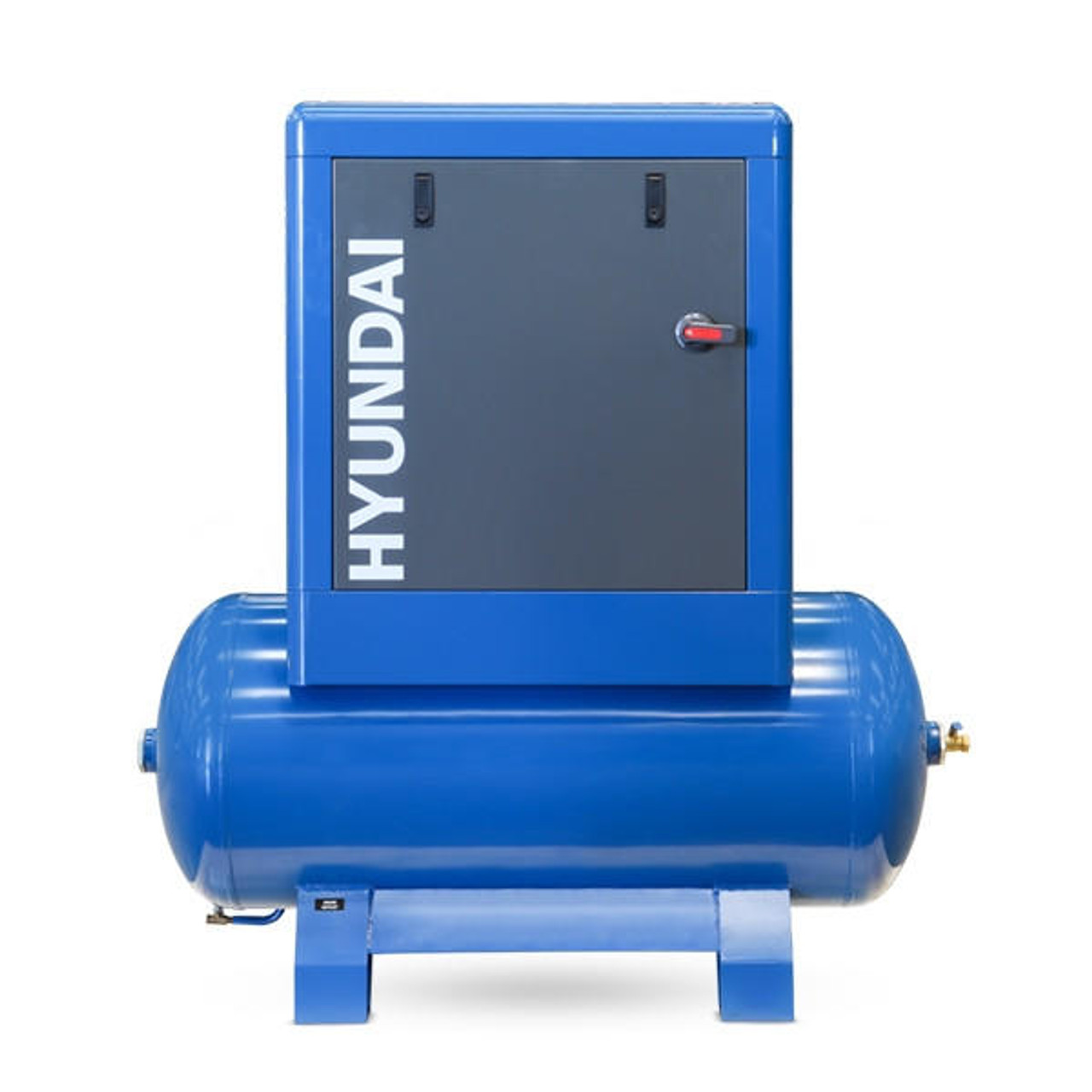

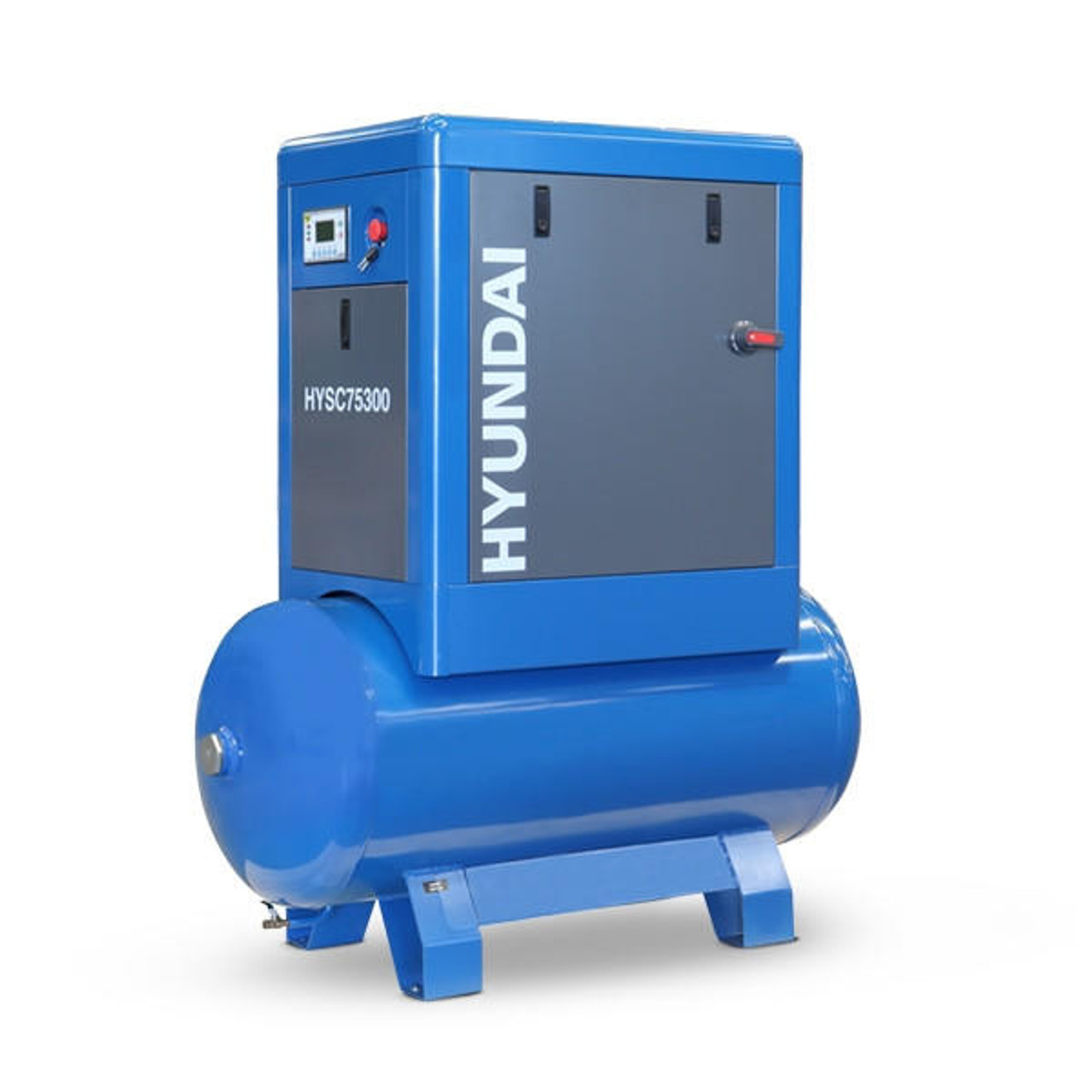

Hyundai HYSC75300 7.5hp 300 Litre Screw Compressor

Description

350L Screw Air Compressor

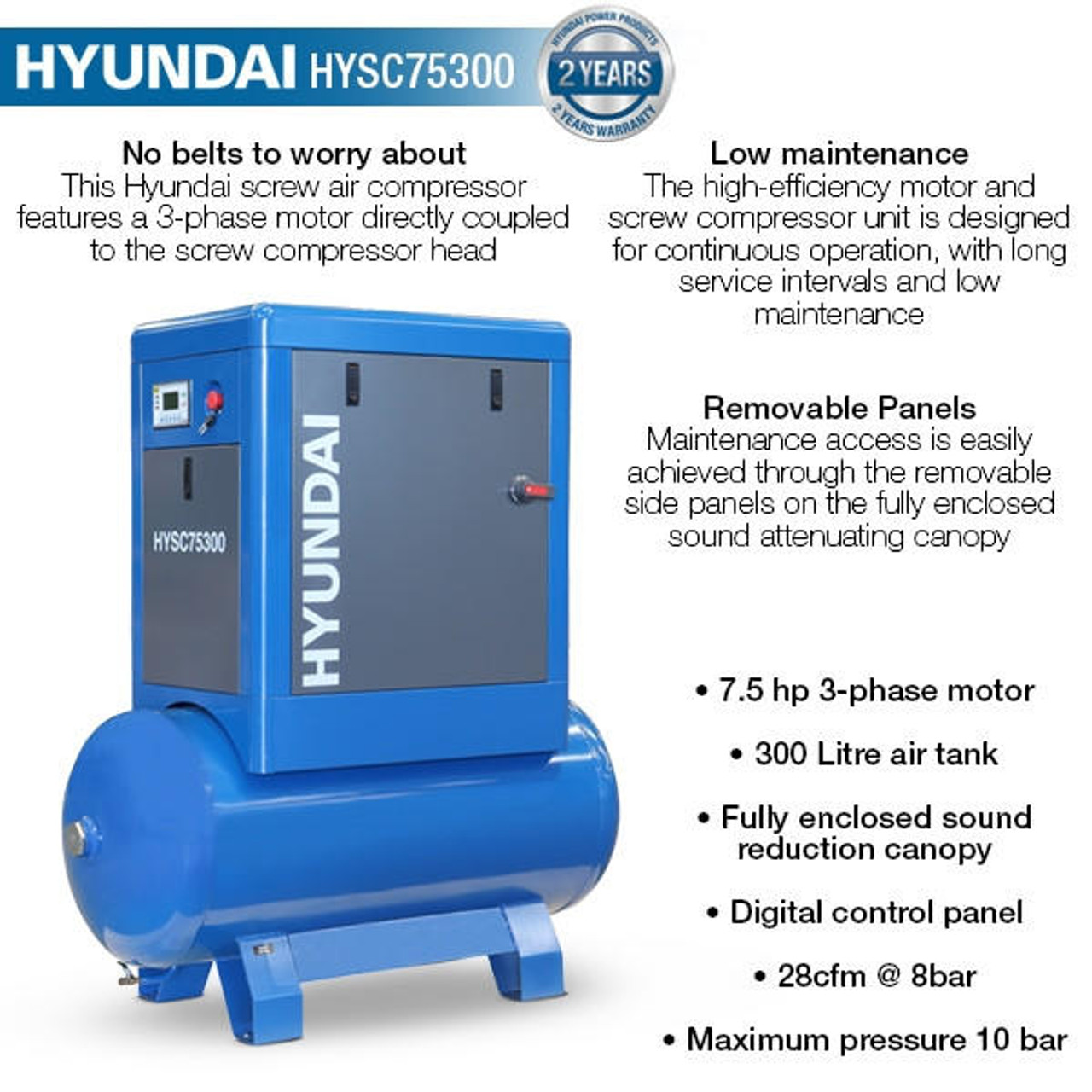

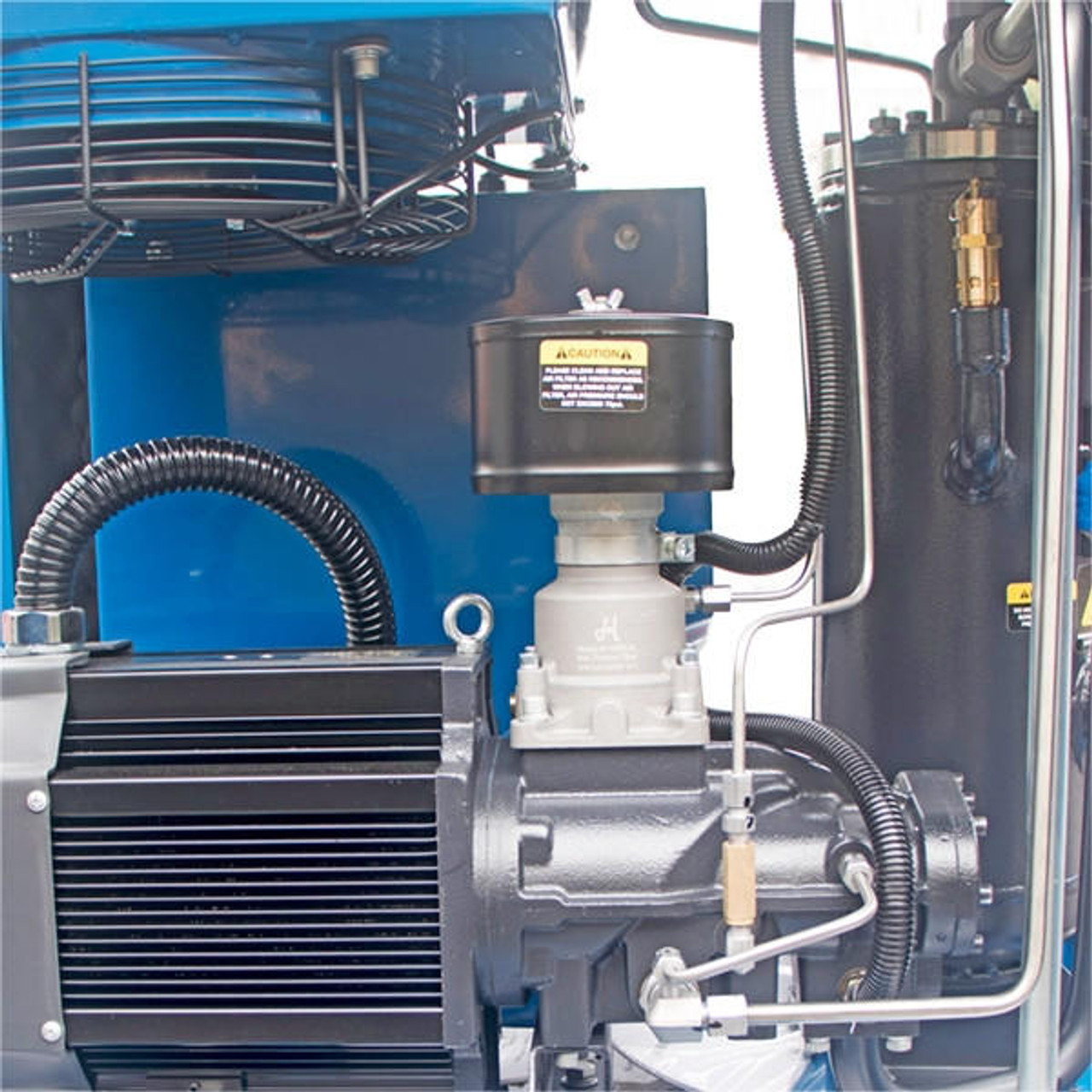

This Hyundai screw air compressor features a 350L tank, 7.5hp 3-phase motor directly coupled to the screw compressor head, so no belts to worry about.
Designed For Continous Operation

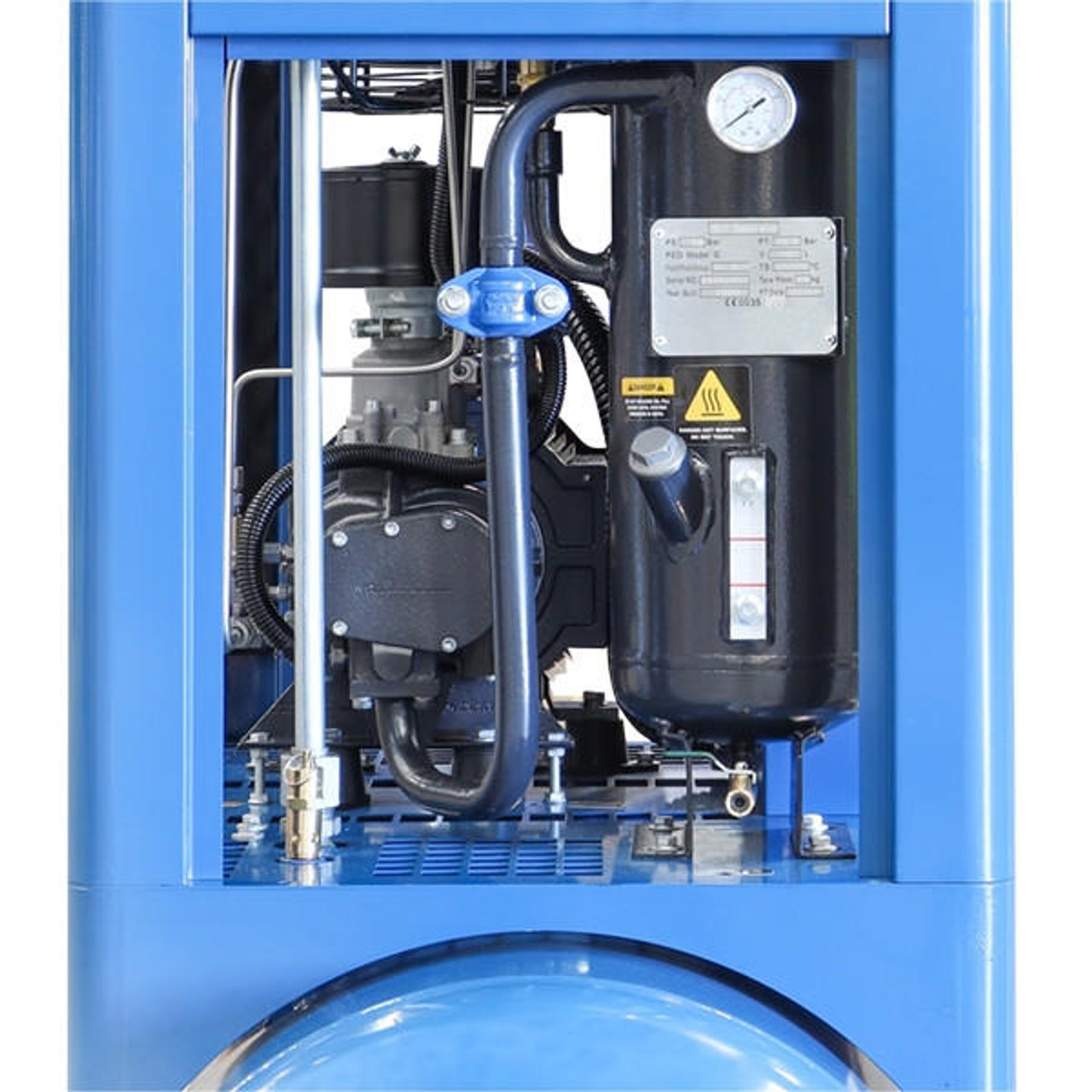

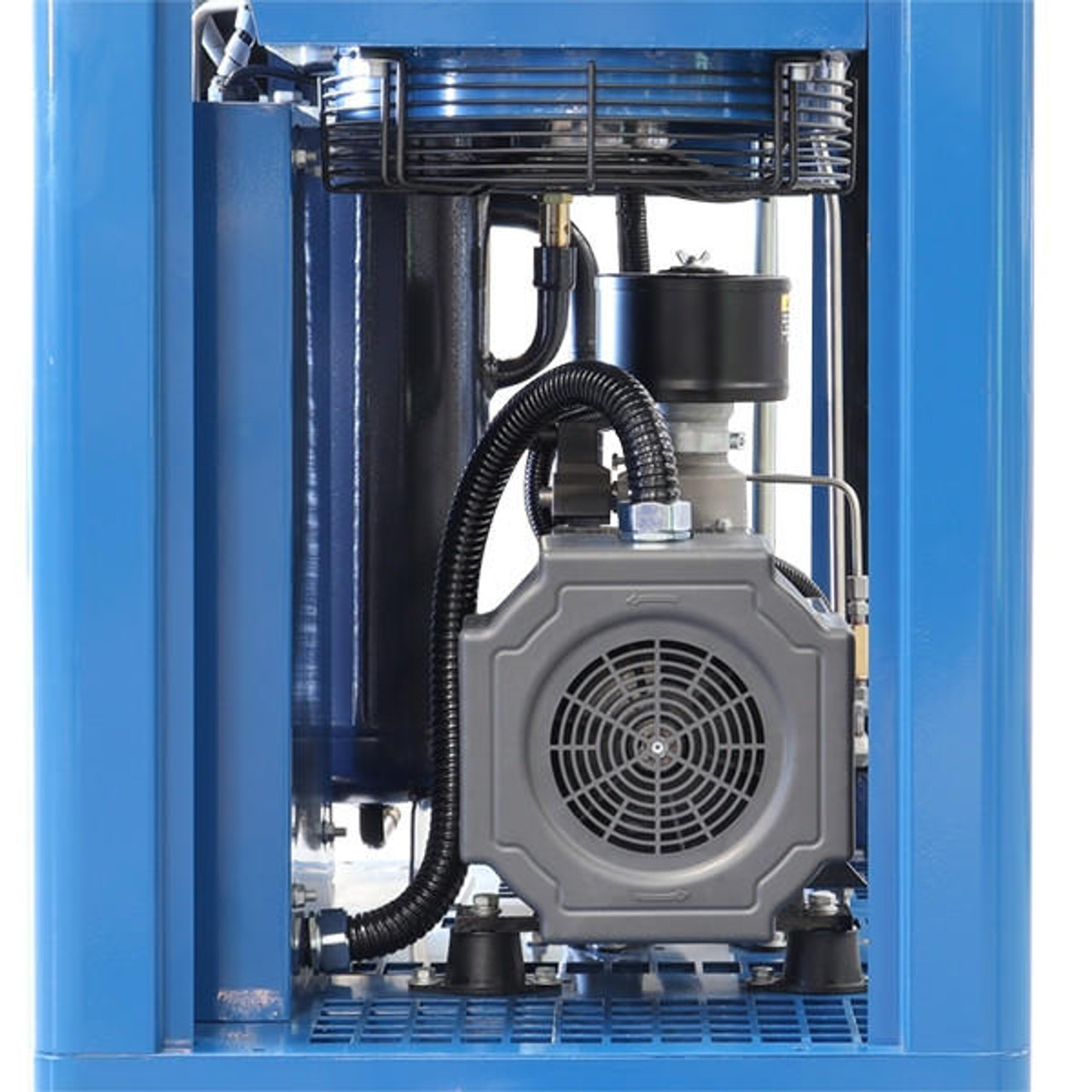

The high-efficiency motor and screw compressor unit is designed for continuous operation, with long service intervals and low maintenance and features an integral air dryer to remove moisture entering the tank.

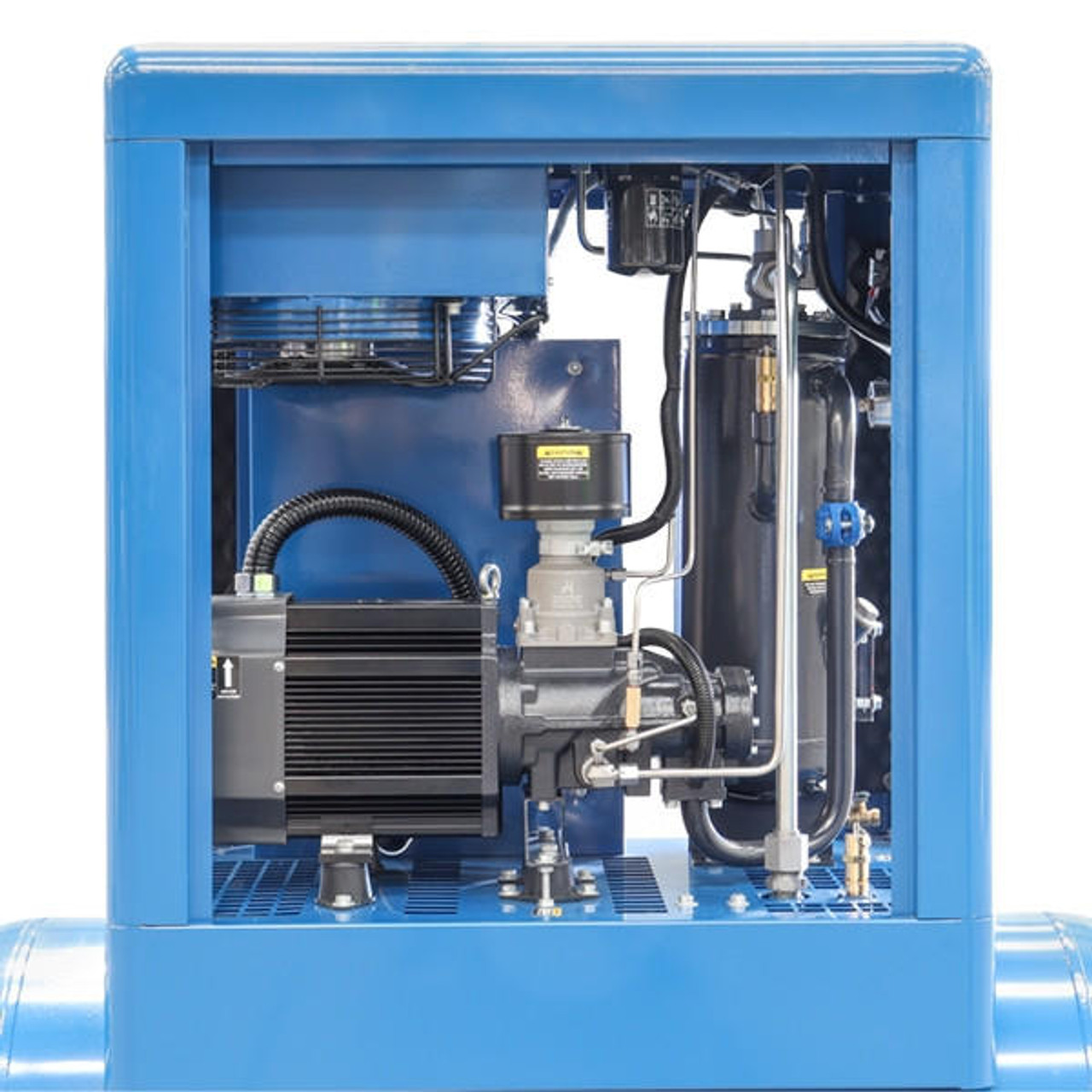

Easy Access For Maintenance

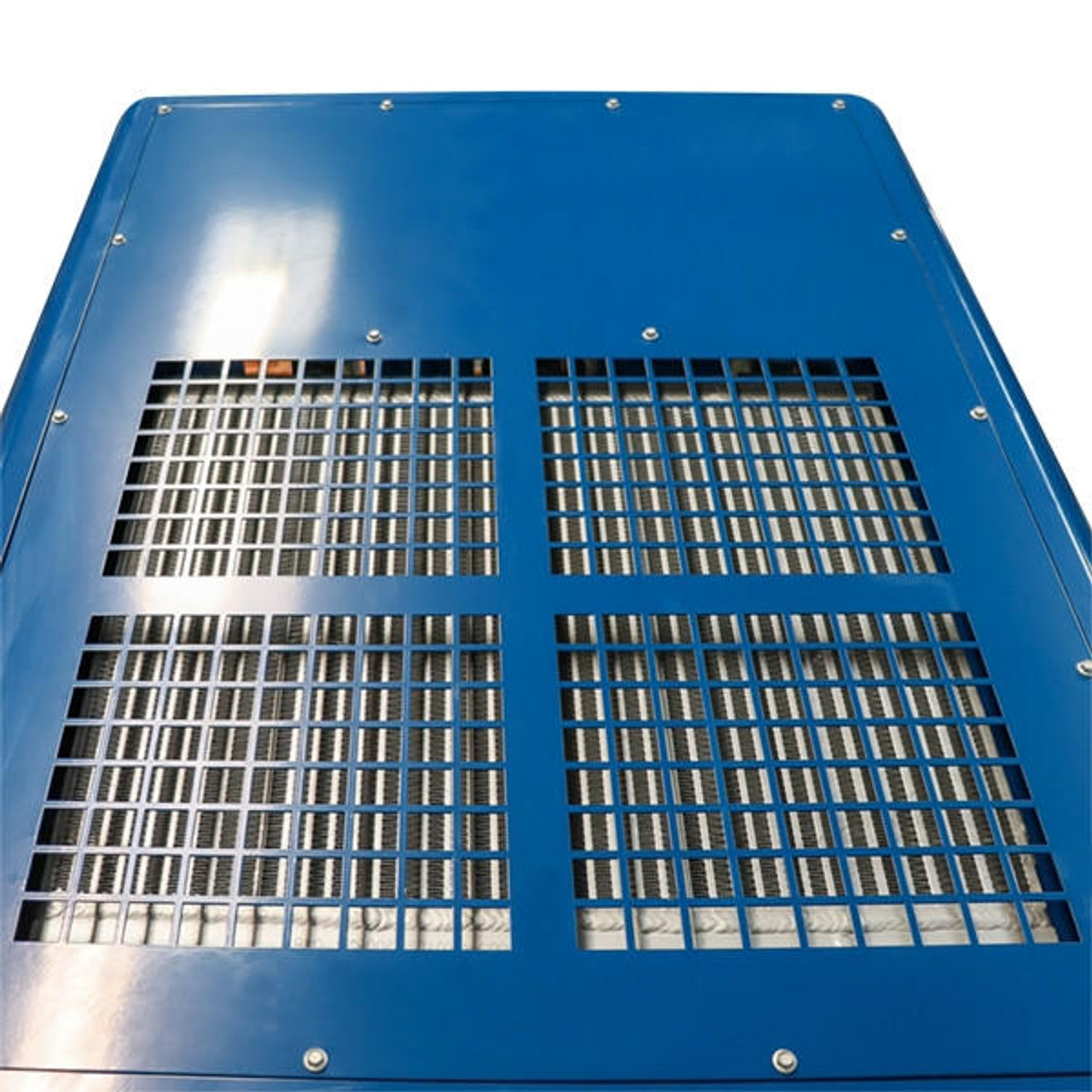

Full maintenance access through easy to remove side panels on the fully enclosed sound attenuating canopy.

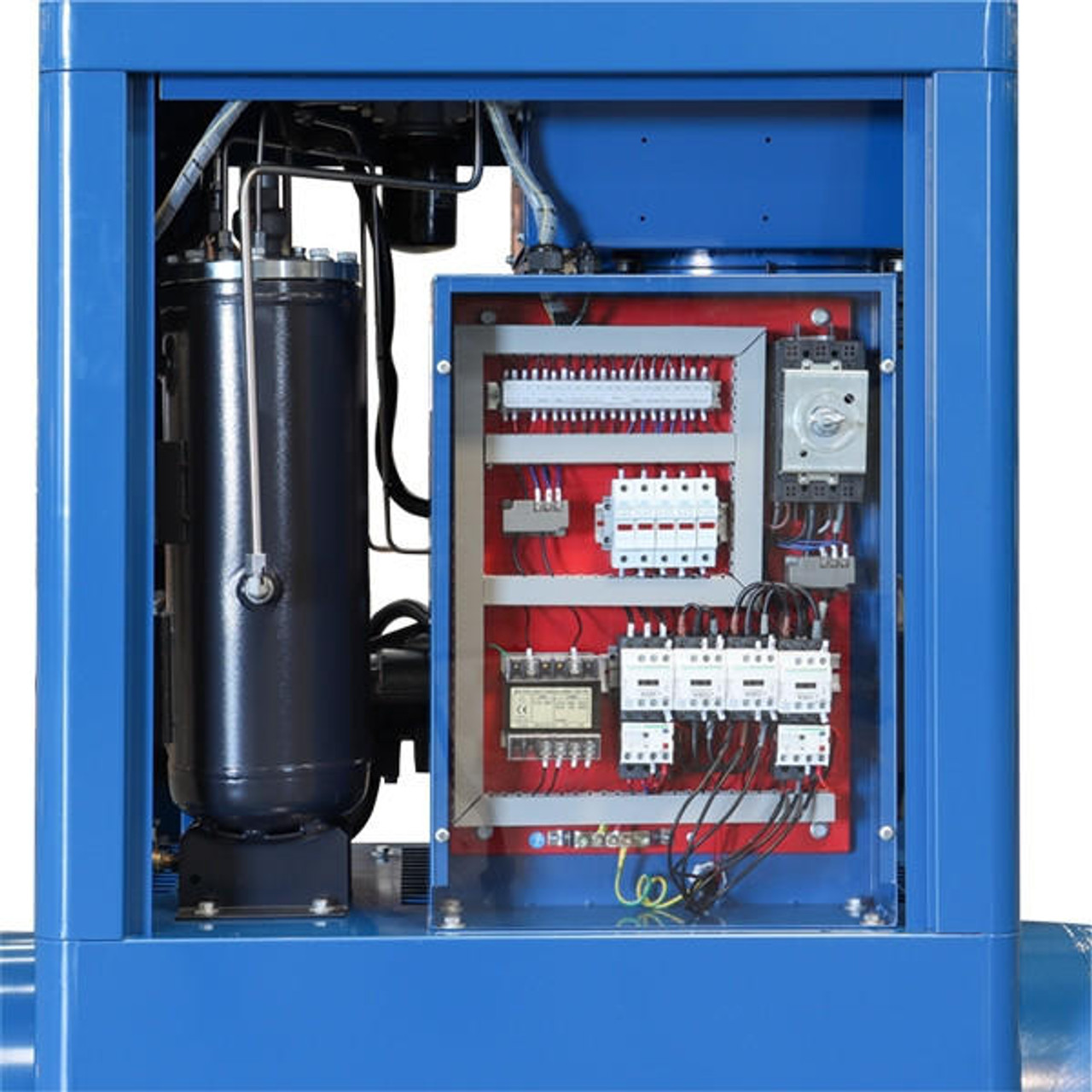

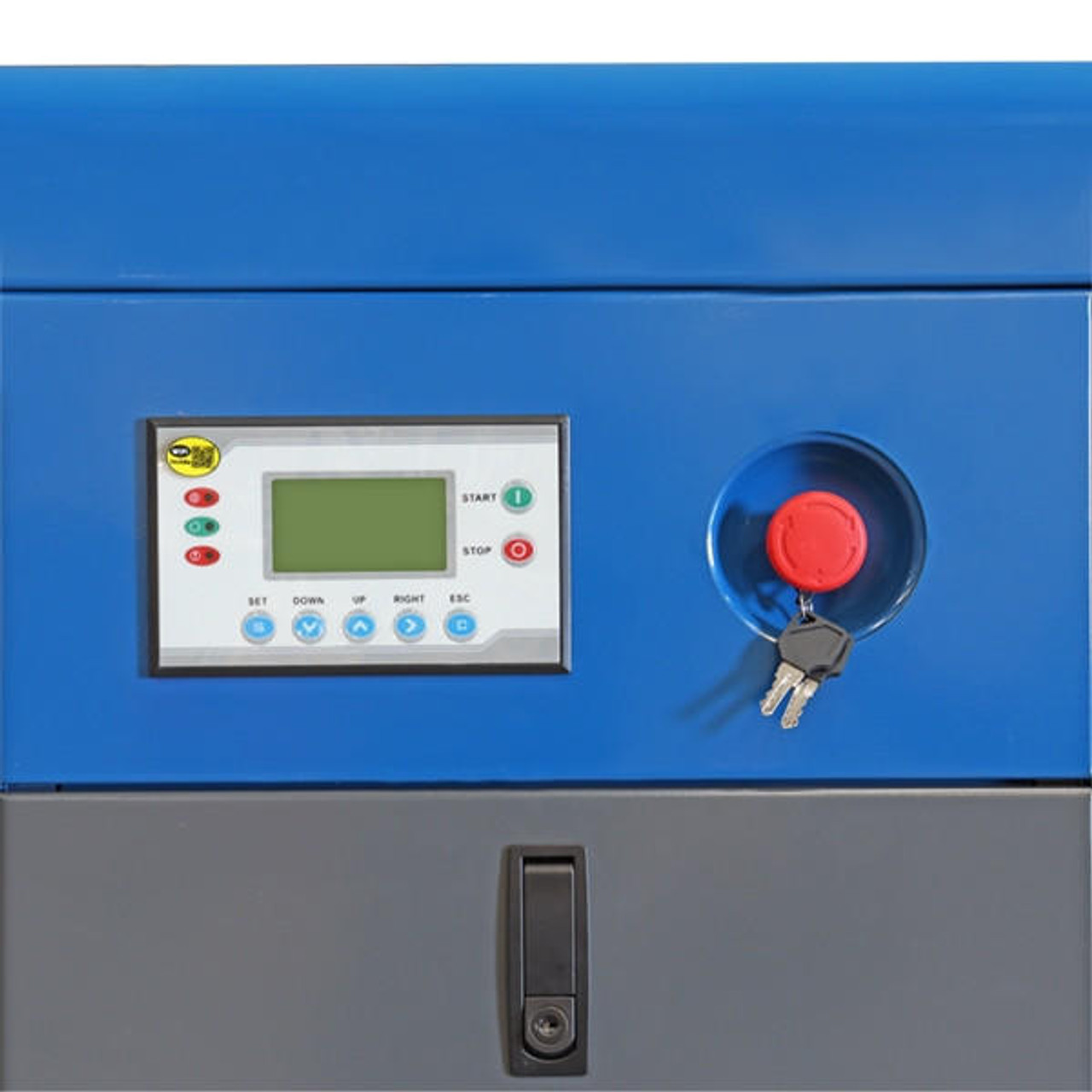

Digital Control Panel
The digital control panel monitors pressure, volts, amps, hours
Forklift Transport Ports

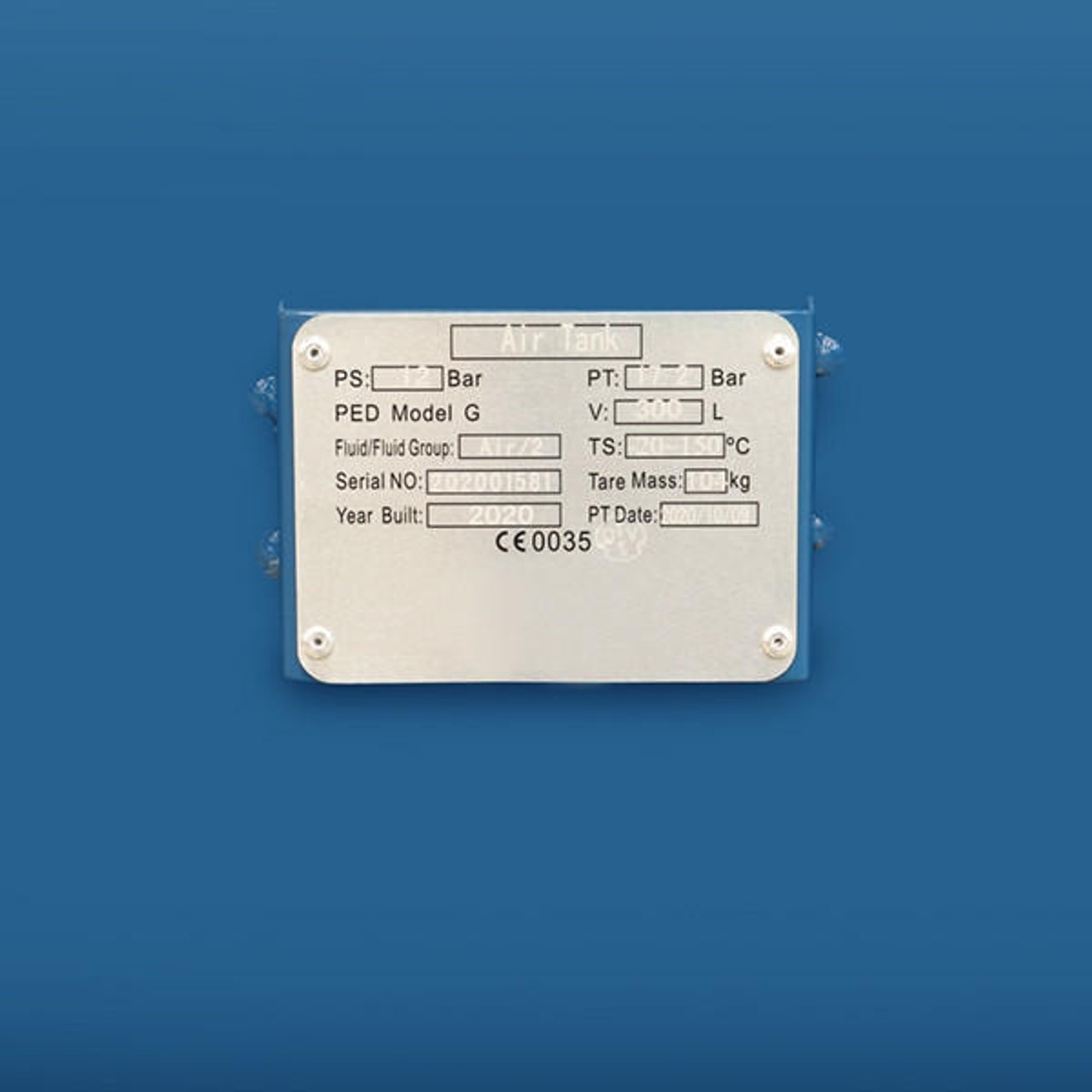

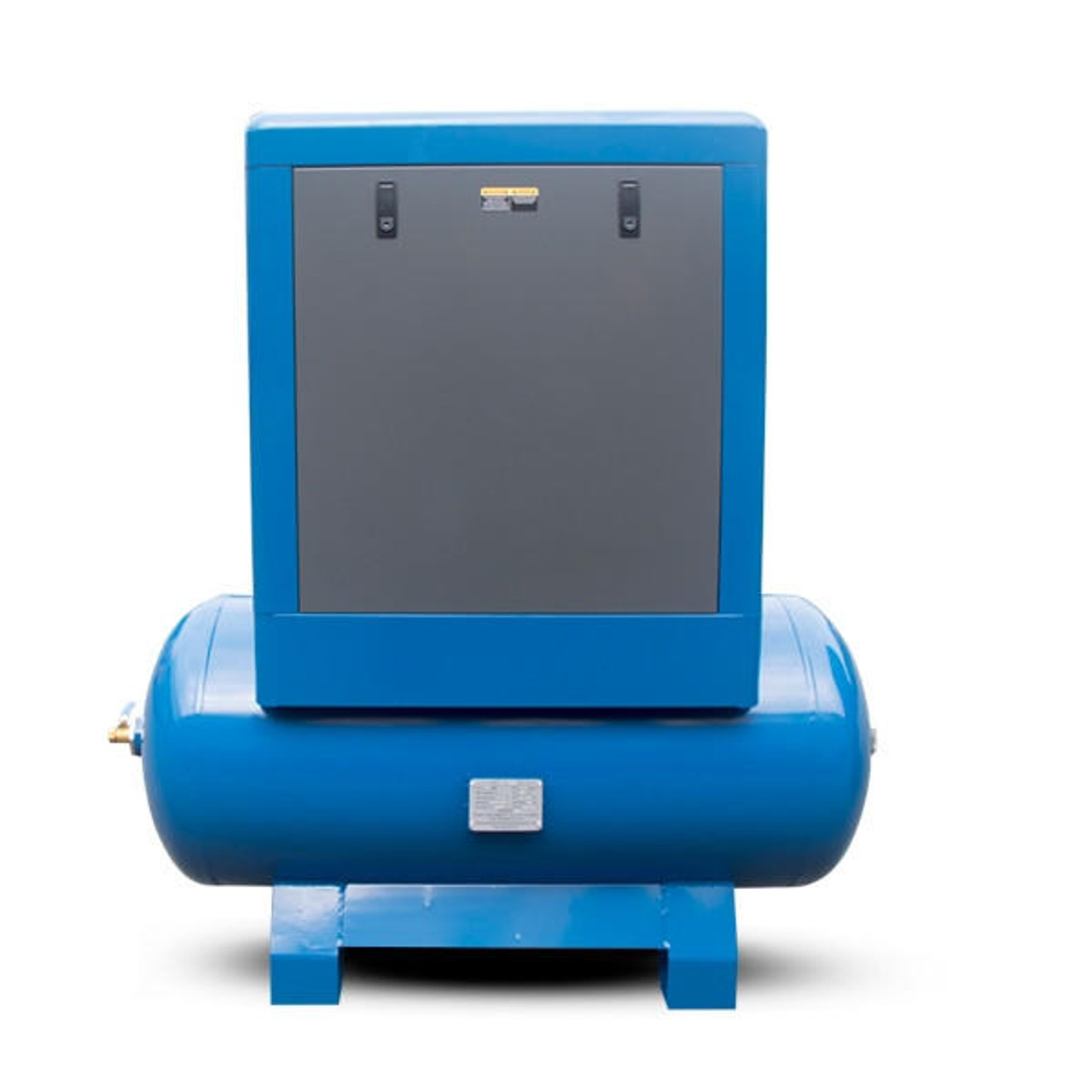

The 350 Litre tank forklift transport holes, a ¾” outlet fitting and water drain tap with CE certification to 12 bar.
Ideal Use
Ideal for spray shops, tyre-fitting garages, large workshops, small factories etc.
Warranty
Covered by 2-Year Hyundai warranty.
Key Features
7.5 hp 3-phase motor
350 Litre air tank
Integral air dryer
Fully enclosed sound reduction canopy
Digital control panel
28cfm @ 8bar
Maximum pressure 10 bar

  • 7.5 hp 3-phase motor
  • 350 Litre air tank
  • Integral air dryer
  • Fully enclosed sound reduction canopy
  • Digital control panel
  • 28cfm @ 8bar
  • Maximum pressure 10 bar

£3,782.99

Out of stock

Notify me when this is avaliable

EAN: 5056275799373 SKU: HYSC75300 Category:

Specification

Model HYSC75300
Start Method Electric
Fuel/Power Source Electric Hard Wired
Drive Type Fixed Speed Direct Drive
Tank Capacity (L) 300
Tank Material Steel
Duty Cycle S1 100%
Cut-In Pressure (psi/bar) 101.5/7
Cut-Out Pressure (psi/bar) 116/11.5
Discharge Pressure (psi/bar) 145/10
Max Pressure (psi/bar) 145/10
Air Flow FAD (L/min) 570 @ 8bar / 522 @ 10 bar
Air Flow FAD (CFM) 26.6 @ 8 bar / 22.8 @ 10 bar
Air Displacement (L/min) 600 @ 8 bar / 550 @ 10 bar
Air Displacement (CFM) 28 @ 8 bar / 24 @ 10 bar
Air Outlet Connection G3/4
Outlet Pressure Regulation Type Fixed
Phase Three
Rated Power (kW) 7
Motor Power kW/hp 5.5/7.5
Pump (RPM) 2960
Speed (RPM) 2960
Frequency (Hz) 50
Noise Level @ 7m (dB) 65
Integral Air Dryer? No
Gross Weight (kg) 340
Net Weight (kg) 300
Fully Assembled Dimensions (H x W x L) (mm) 1560 x 600 x 1450
Packaged Dimensions (H x W x L) (mm) 1650 x 790 x 1700
Product Type Air Compressor
Warranty (years) 2
Model EAN 5056275799373
In The Box Air Compressor & User Manual
