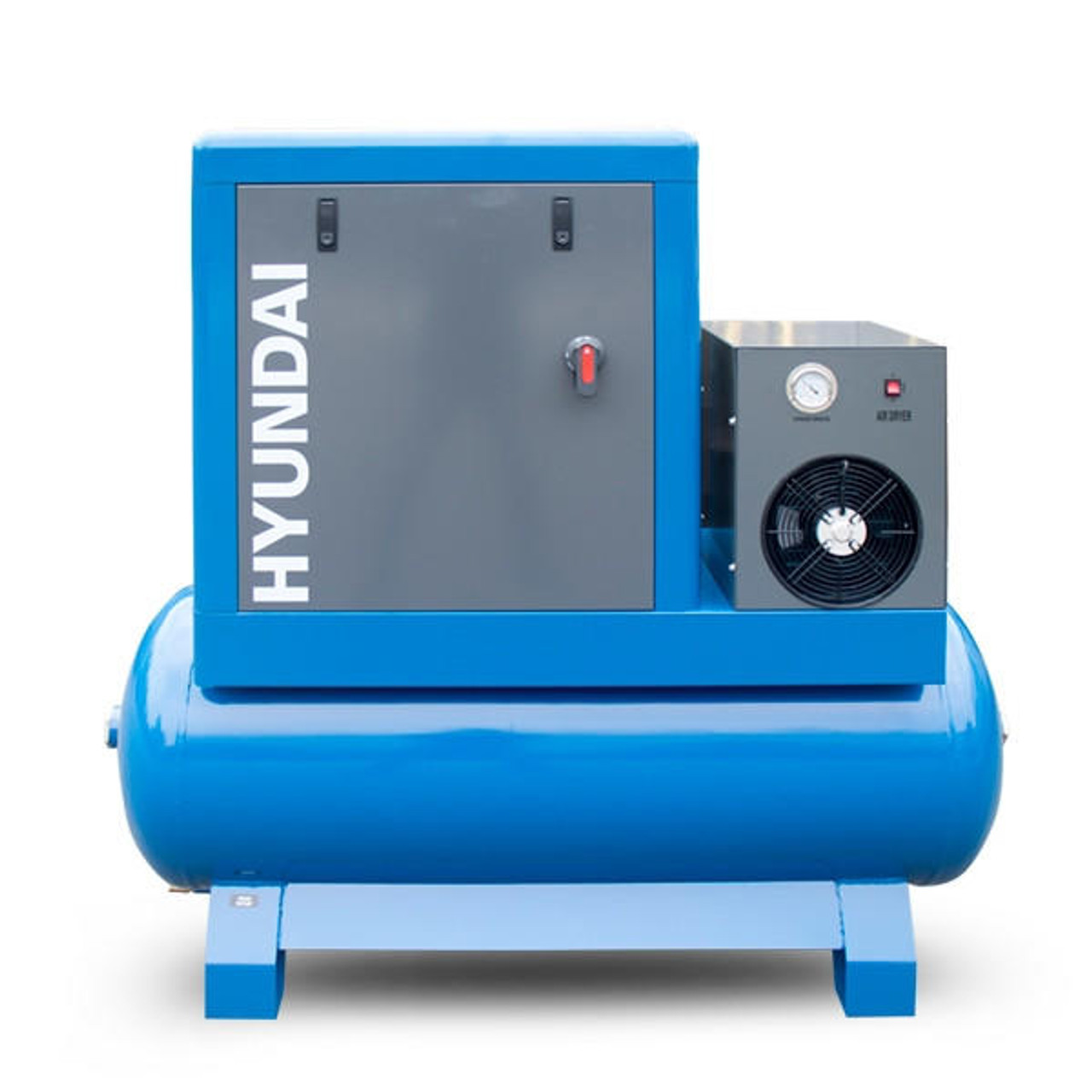

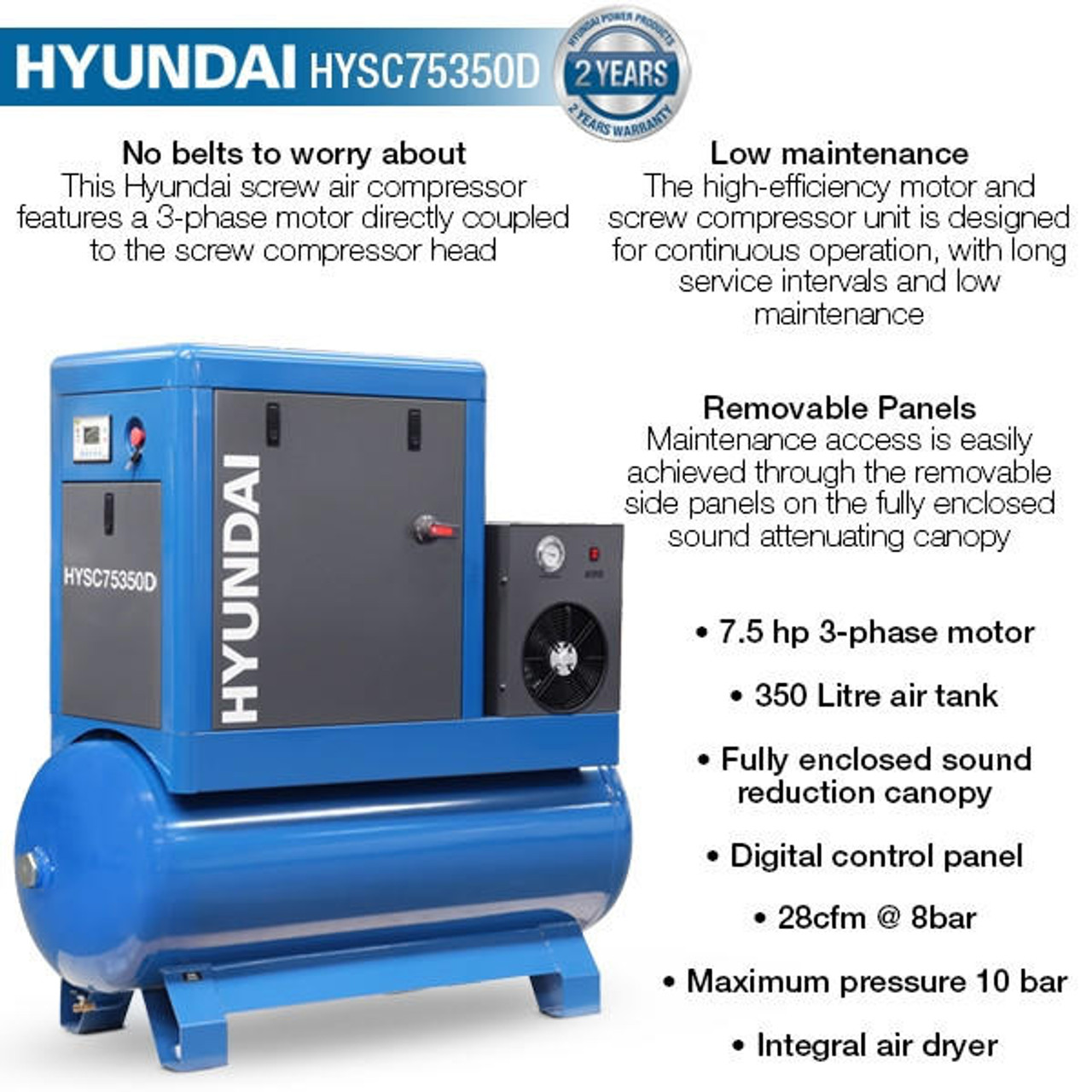

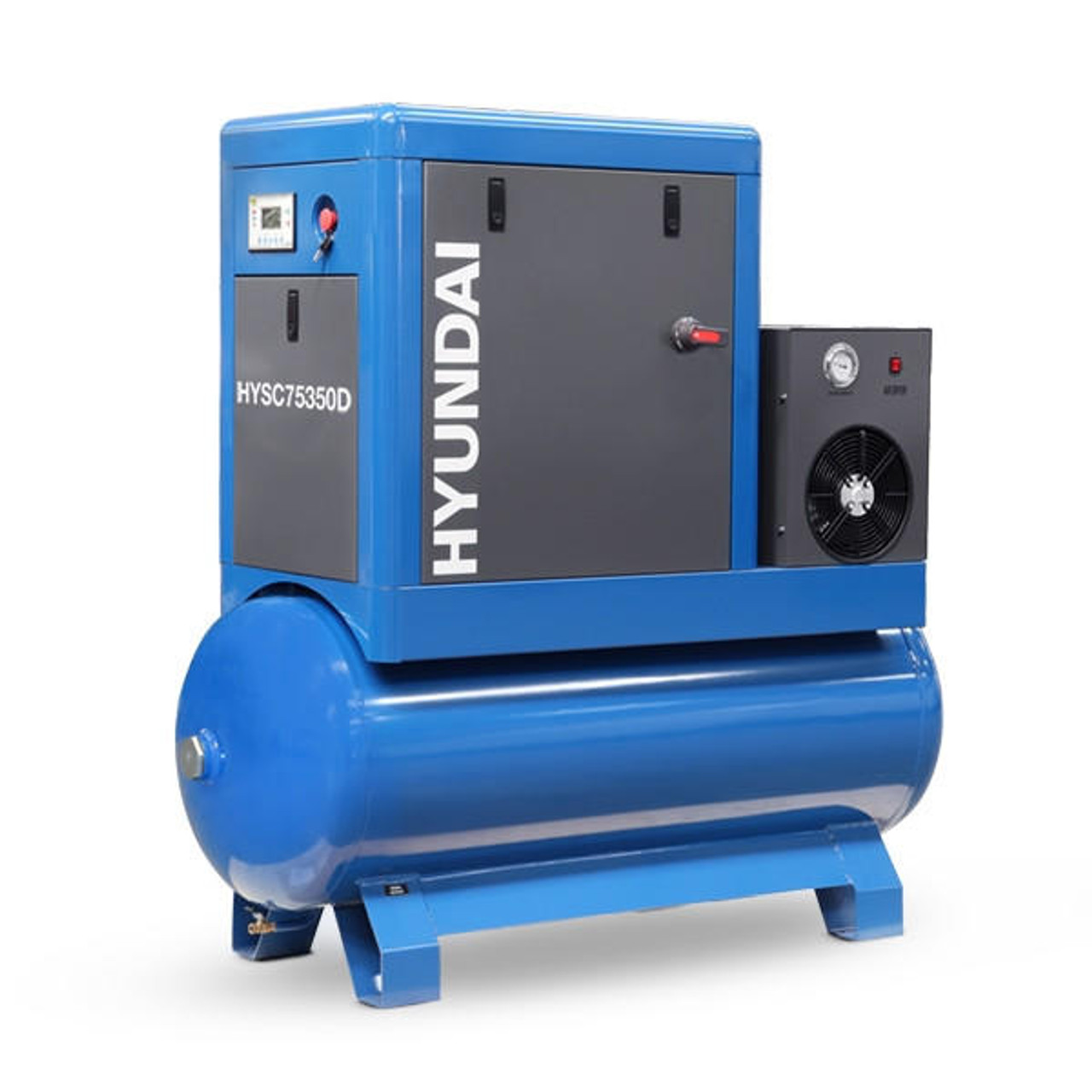

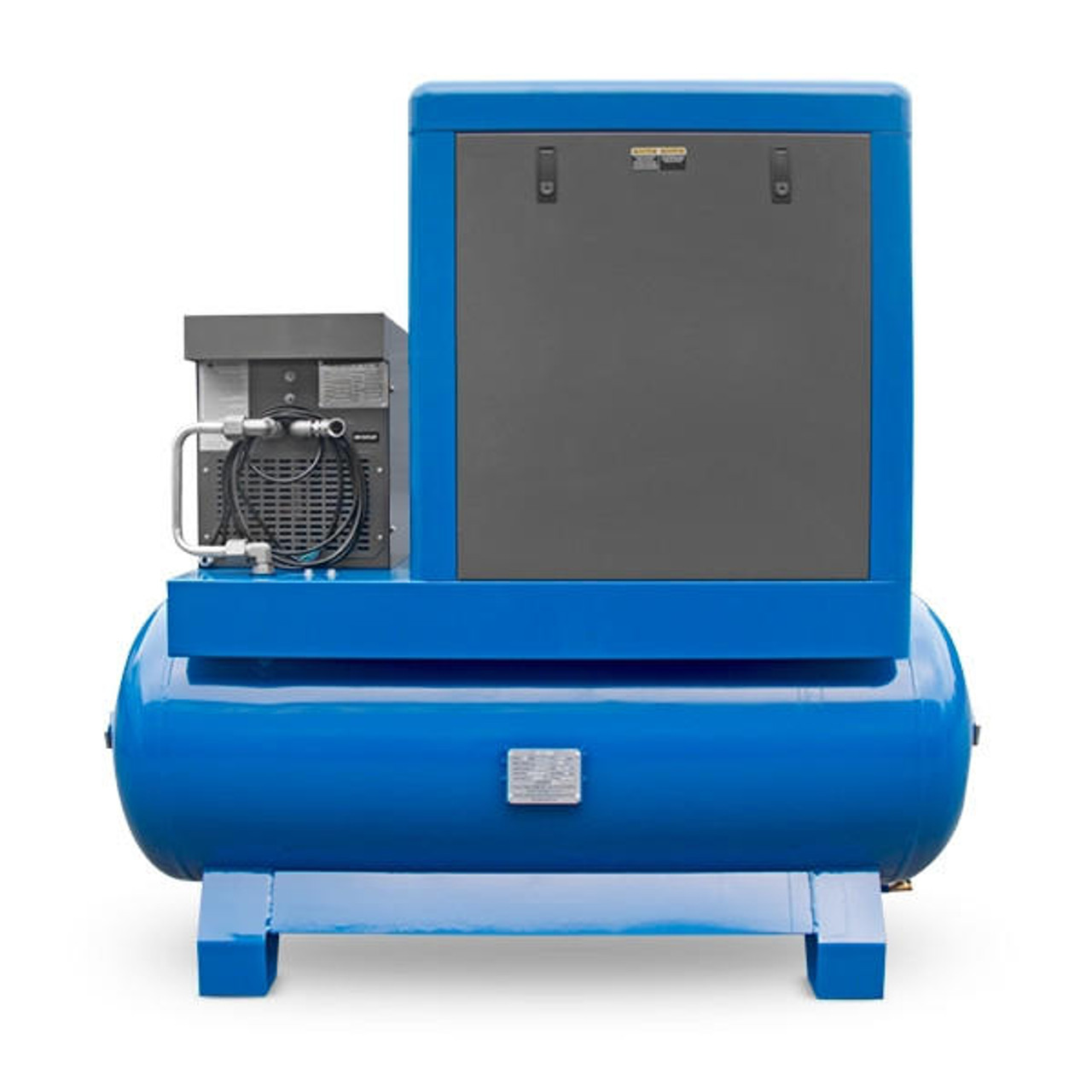

Hyundai HYSC75350D 7.5hp 350 Litre Screw Compressor

Description

Powerful And Compact Compressor
The HY5508 is a powerful yet compact 550w direct-drive oil-free low noise air compressor from Hyundai.
Suitable For Various Jobs
Designed for DIY and light applications the HY5508 silenced oil-free air compressor is ideal for air brushing, blowing away dirt and dust, nailing, inflating tyres & inflatables or operating air tools.
Ultra Lightweight Compressor
Weighing only 15kg the HY5508 whisper compressor is lighter than your conventional piston type air compressor and is completely oil-free, so there is no risk of oil contamination in the air supply.
Portable Air Compresor
The HY5508 features 4 robust rubber mounted feet and a carry handle for easy manoeuvrability.
Powered By Standard Mains Supply
Powered by a 550w motor directly connected to the oil-less air compressor pump and rubber mounted for low vibration, makes it ideal for the home, light workshop or garage use and is powered by standard mains 230v supply.
Maintenance Free
This maintenance-free compressor uses an oil-free diaphragm pump to produce a clean air supply and considerably reduce noise compared to conventional piston compressors.
8L Tank
With an 8-litre tank capacity, this compressor provides an air displacement of 4CFM/ 120 litres per minute and a discharge pressure of 7 bar/ 100 psi.
Euro Quick Release Connectors
Fitted with Euro quick release connectors this compressor is fitted with a standard 13A UK Plug.
Compressor Care

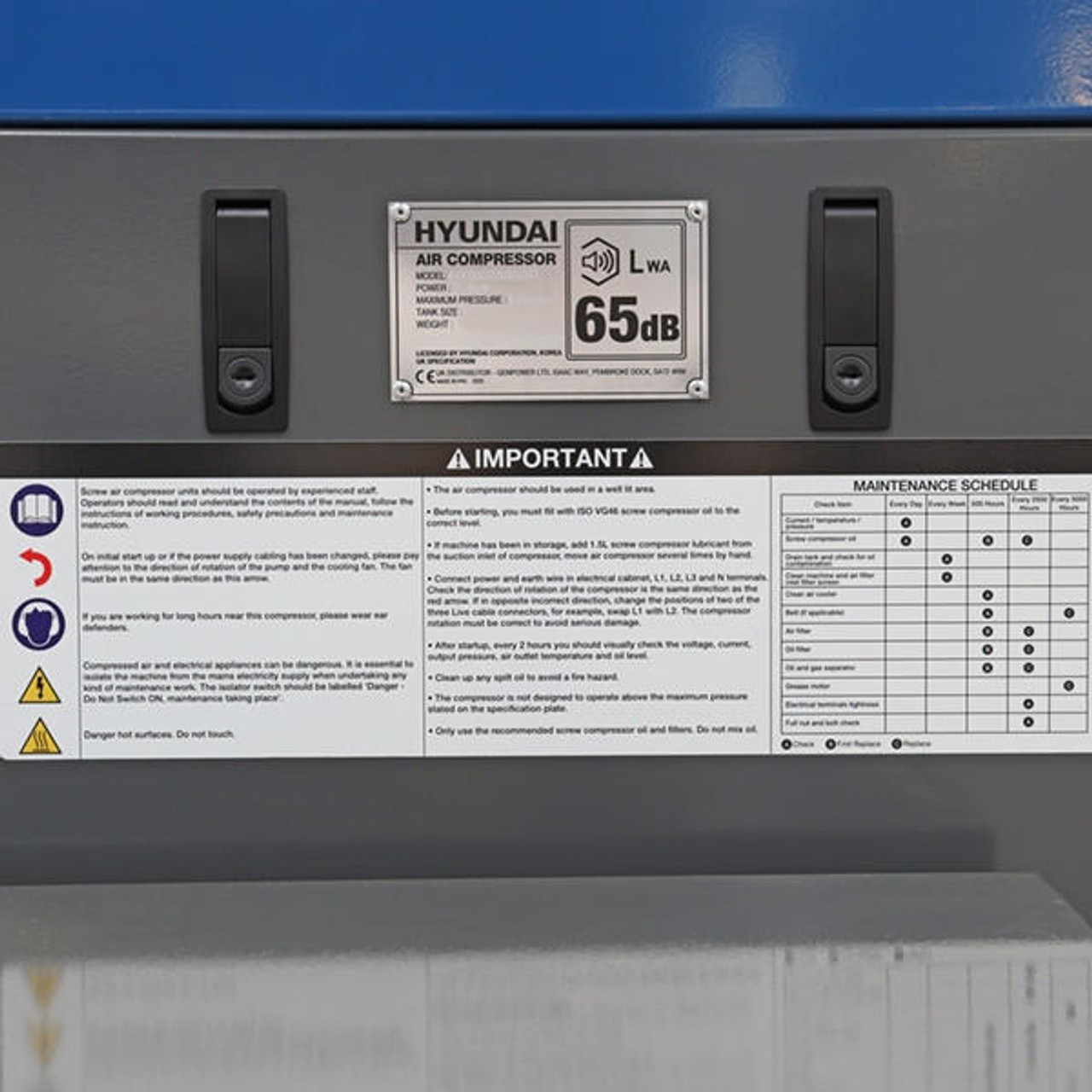

Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it from being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.
In The Box:
HY5508 Electric Air Compressor
User Manual
Warranty
Covered by Hyundai 2 year standard warranty.
Key Features
Low Noise Air Compressor From Hyundai
Oil Free – Means Low Maintenance & No Oil Contamination in the Compressed Air
Powered by a 550W, 230V Direct Drive Electric Motor provides 4 CFM of Air Displacement – The 8-litre tank is capable of 120 Litres / Minute at 100PSI
HY5508 is fitted with Euro (Q/R) quick release Air Connections, standard 13A 3 Pin UK socket & weighing only 15KG – means the oil free air compressor is Ultra Lightweight & Manoeuvrable
Covered by Hyundai 2 Year Warranty Including Full UK Spares Available for years to come.

  • Low Noise Air Compressor From Hyundai
  • Oil Free – Means Low Maintenance & No Oil Contamination in the Compressed Air
  • Powered by a 550W, 230V Direct Drive Electric Motor provides 4 CFM of Air Displacement – The 8-litre tank is capable of 120 Litres / Minute at 100PSI
  • HY5508 is fitted with Euro (Q/R) quick release Air Connections, standard 13A 3 Pin UK socket & weighing only 15KG – means the oil free air compressor is Ultra Lightweight & Manoeuvrable
  • Covered by Hyundai 2 Year Warranty Including Full UK Spares Available for years to come.

£4,799.99

Out of stock

Notify me when this is avaliable

EAN: 5056275799335 SKU: HYSC75350D Category:

Specification

Model HYSC75350D
Start Method Electric
Fuel/Power Source Electric Hard Wired

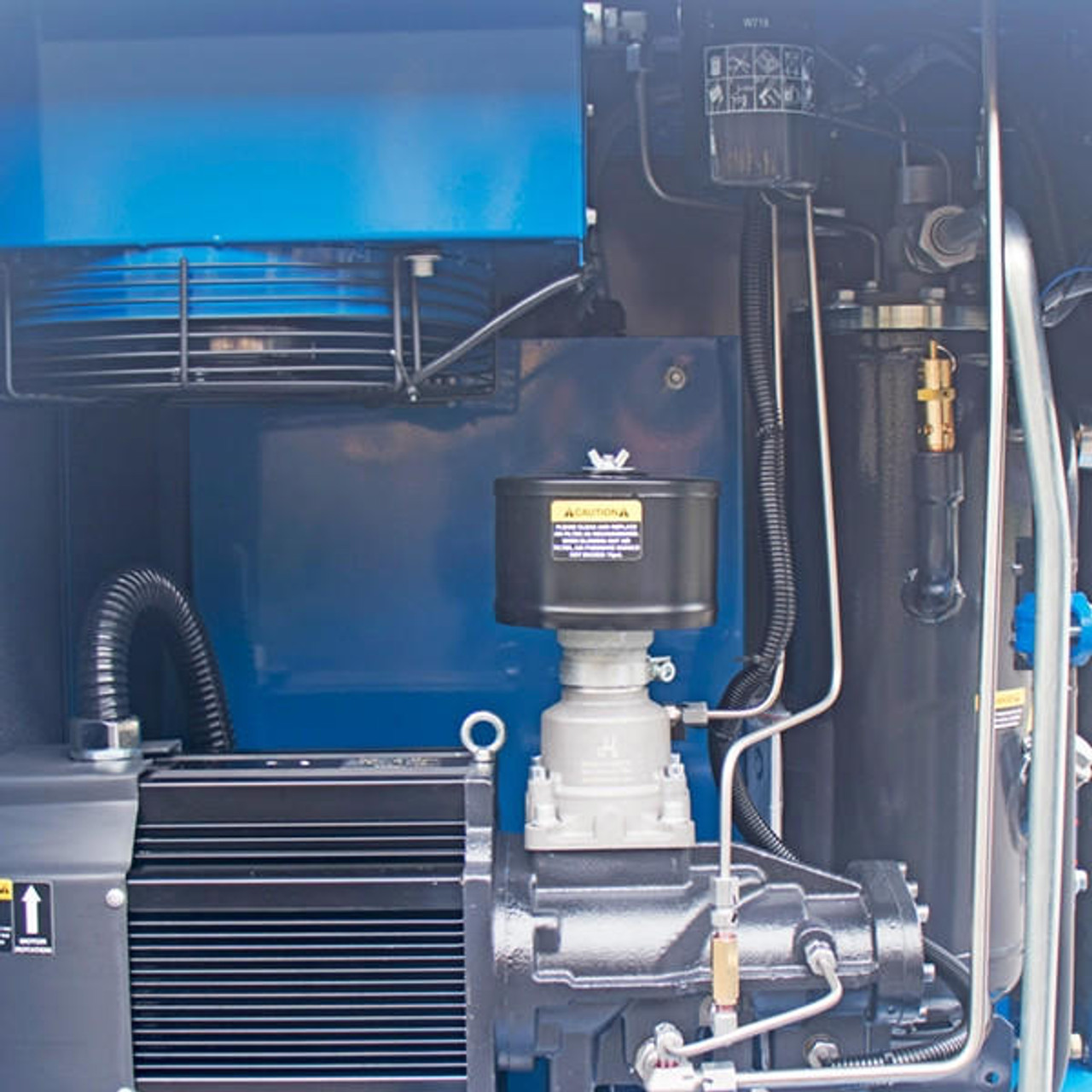

Drive Type Fixed Speed Direct Drive
Tank Capacity (L) 350
Tank Material Steel
Duty Cycle S1 100%
Cut-In Pressure (psi/bar) 101.5/7
Cut-Out Pressure (psi/bar) 116/11.5
Discharge Pressure (psi/bar) 145/10
Max Pressure (psi/bar) 145/10
Air Flow FAD (L/min) 570 @ 8 bar / 522 @ 10 bar
Air Flow FAD (CFM) 26.6 @ 8 bar / 22.8 @ 10 bar
Air Displacement (L/min) 600 @ 8 bar / 550 @ 10bar
Air Displacement (CFM) 28 @ 8 bar / 24 @ 10 bar
Air Outlet Connection G3/4
Outlet Pressure Regulation Type Fixed
Phase Three
Rated Power (kW) 7
Motor Power kW/hp 5.5/7.5
Pump (RPM) 2960
Speed (RPM) 2960
Frequency (Hz) 50
Noise Level @ 7m (dB) 65

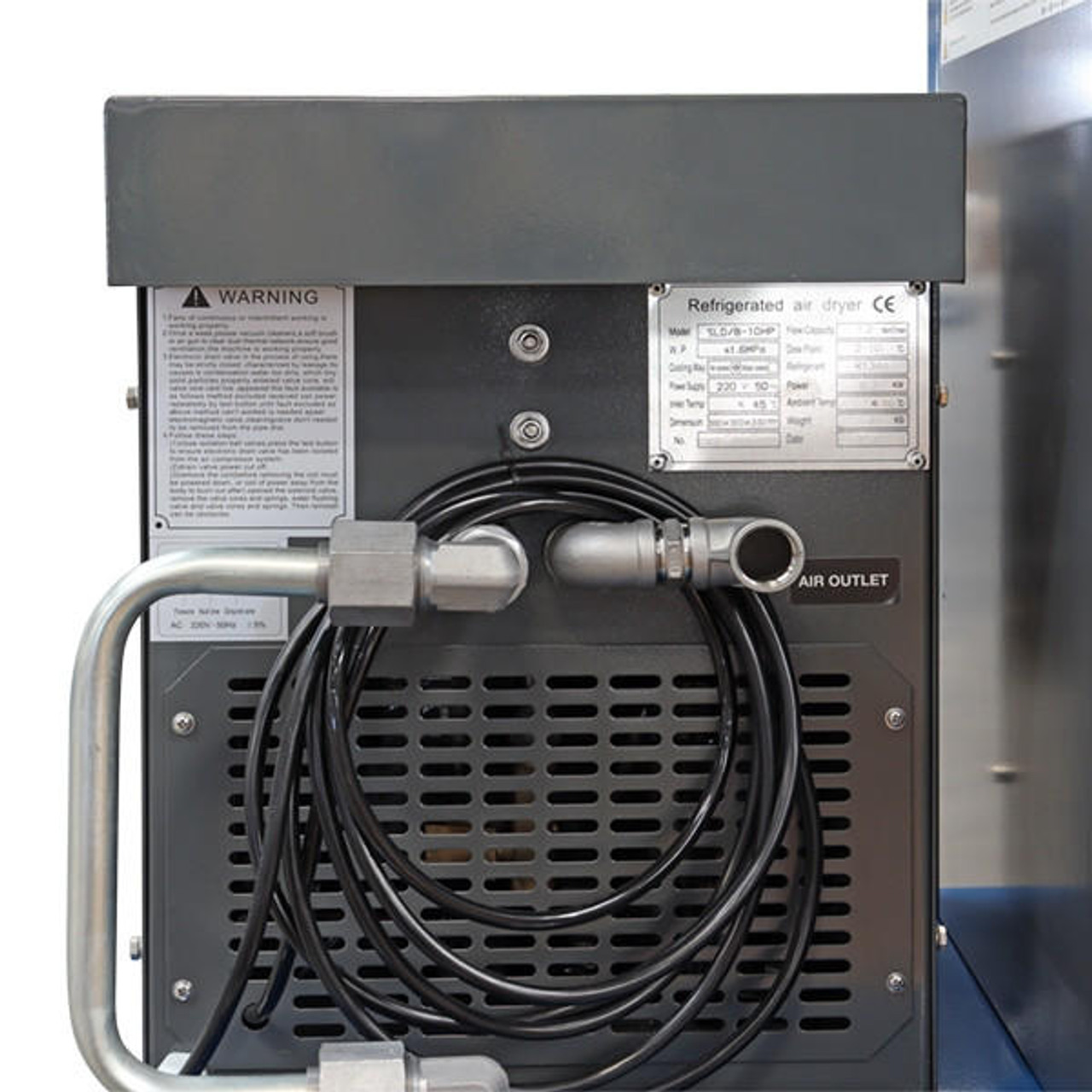

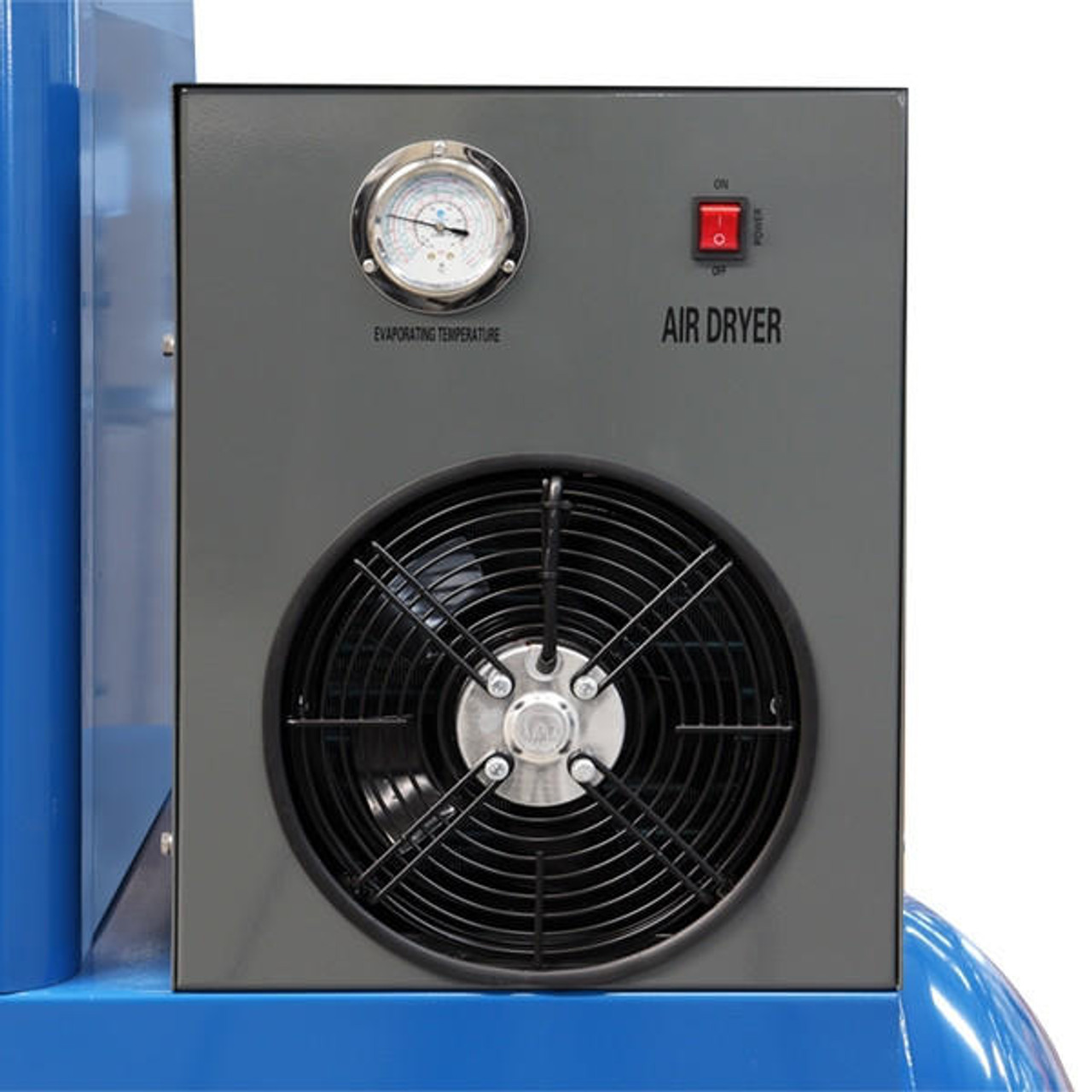

Integral Air Dryer? Yes
Gross Weight (kg) 430
Net Weight (kg) 380
Fully Assembled Dimensions (H x W x L) (mm) 1560 x 600 x 1650
Packaged Dimensions (H x W x L) (mm) 1860 x 790 x 1750
Product Type Air Compressor
Warranty (years) 2
Model EAN 5056275799335
In The Box Air Compressor & User Manual
